Jung Sks dirty water shaft JP47347 B 800-D 32, without pump
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP47347
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

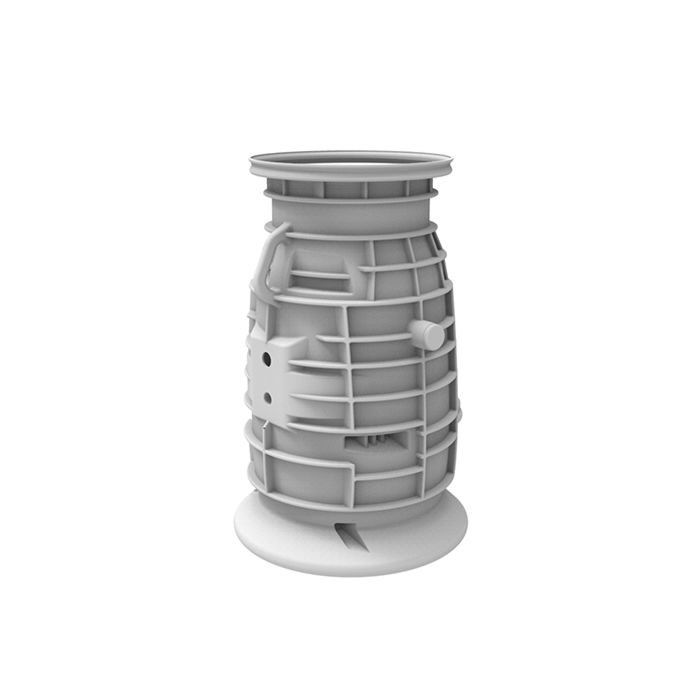

Jung Sk's waste water sump JP47347
- buoyancy safe
- PE
- passable up to class B 125
- to accommodate a submersible waste water pump
- deposit-free collection space
- 1 sleeve DN 150 for the inlet
- 3 pipe sockets DN 70/100 for ventilation or cable duct
- mounted sliding tube system DN 32
- PP piping
- vertically closing non-return valve
- Ball valve can be operated from above
- 5 m nylon cable and stainless steel pressure line outlet R 1 1/4
- can be extended to an installation depth of 2
- 9 m (class A) or 2
- 75m (class B)
- Compensation of level differences with support ring
- Dimensions without cover: Nominal diameter: 800 mm
- Total height: 1610mm
- Sole inlet from above: 1160 mm
- Sole pressure nozzle from above: 760 mm
- Tank volume: 750 l
- Weight: 84kg
