Jung submersible motor pump JP47337 UV 620-1, 230 V, without plug, 10 m cable
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

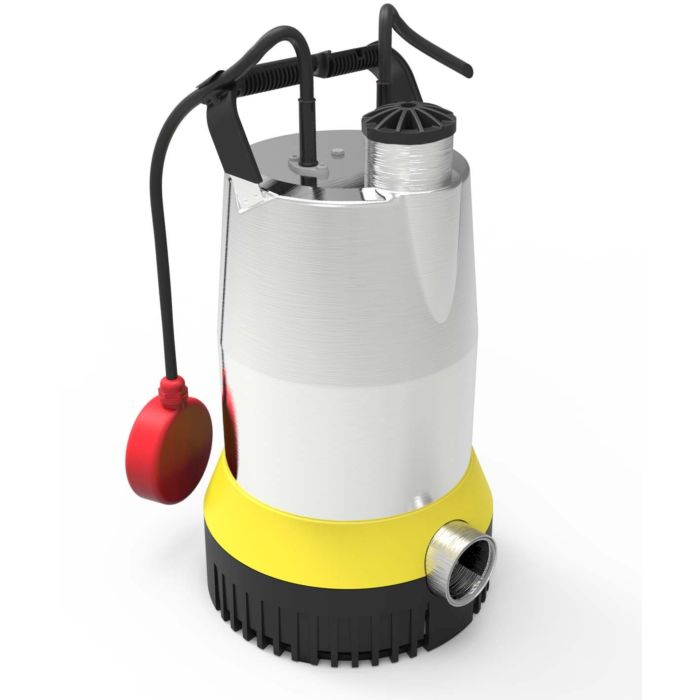

Jung submersible pump JP47337
- vertical single-stage submersible motor pump with vertical and horizontal pressure outlet and high operational reliability
- SIC mechanical seal on the medium side, safe to run dry and mechanical seal on the motor side
- interchangeable
- Longitudinally watertight cast cable entry
- motor housing
- Impeller and shaft made of stainless steel
- Plastic strainer base
- Cable 10 m H07 RN-F 3G1
- 0
- Free passage 10 mm
- pressure port 2
- Pumped medium max 40 °C
- Flow rate Q max 38 m3/h
- Head H max 18 m
- Weight 26kg
- Voltage 1/N/PEx230 V
- 50Hz
- stream 9
- 8 A
- Power P2 1st
- 6kW
- Speed 2900 rpm
- Degree of protection IP 68
- Motor protection winding thermostats
Downloads (6)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
