Jung submersible probe JP44809 10 m, explosion-proof, for downstream control
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP44809
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

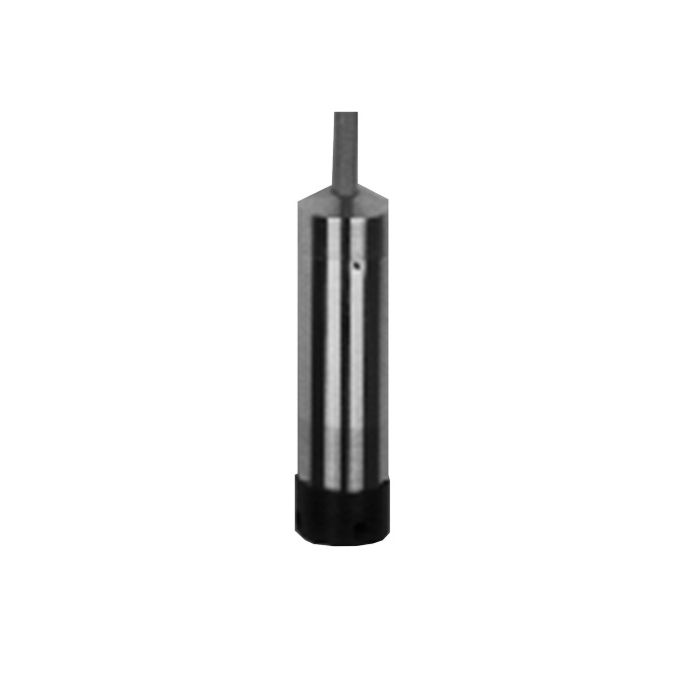

Jung submersible probe JP44809
- Level sensor for water level-dependent switching on of a downstream control system
- Submersible probe made of stainless steel 1.4571 with 10 m cable made of PUR material and integrated air hose for atmospheric pressure compensation
- Ceramic separating membrane
- Overpressure-proof up to 10 mWS and short-circuit proof
- Output signal 4-20 mA
- temperature compensated
- 2-wire technology
- Cable gland with lock nut for attachment to a traverse
- Liquid pressure is transferred to a separating membrane in a submersible probe
- which is coupled to a semiconductor sensor
- which transmits a standard current signal of 4-20 mA to the microprocessor-controlled evaluation device via an amplifier
