Jung U6K ES drainage pump JP00227 4 meter pipe, for drainage drainage

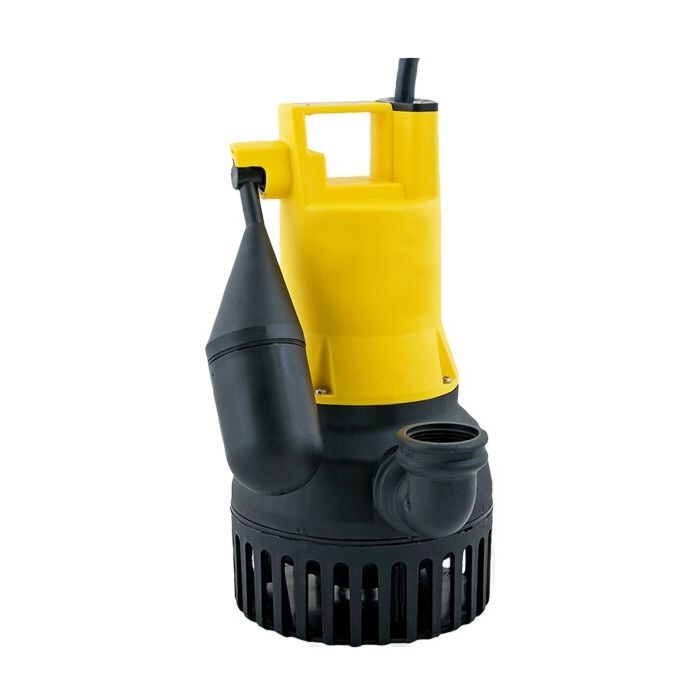

Jung U6K ES drainage pump

• Item number: JP00227
• for drainage drainage
• Drainage submersible pump
• 4 m cable with built-in automatic switching
• fully floodable
• Longitudinal watertight cast cable entry, vertical single-stage, safe to run dry
• Silicon carbide mechanical seal independent of the direction of rotation on the medium side, as well as oil chamber and radial shaft seal to the engine compartment
• Continuous operation possible when surfaced
• Built-in, automatically reactivated, temperature-dependent motor protection
• Motor housing and rotor shaft (fully encapsulated) made of stainless steel
• Plastic pump housing and impeller
• 90° connecting elbow (2x internal thread 1 1/4") included in delivery
• Power cable with Schuko plug
• VDE tested
• LGA design tested according to DIN EN 12050-2
• Protection class: IP 68
• free passage: 10 / 20 mm
• Flow rate: Q = 15 - 1 m³/h
• Delivery height: H = 1 - 8.5 m
• Motor power: P2 = 0.49 kW
• Speed: n = 2850 1/min
• Current type/voltage: W current 230 V
• Cable length: 4 m
• Cable type: H07RN-F 3G1.0
• Radial pressure port: 1 1/4", outside
• Weight: 5.5kg
