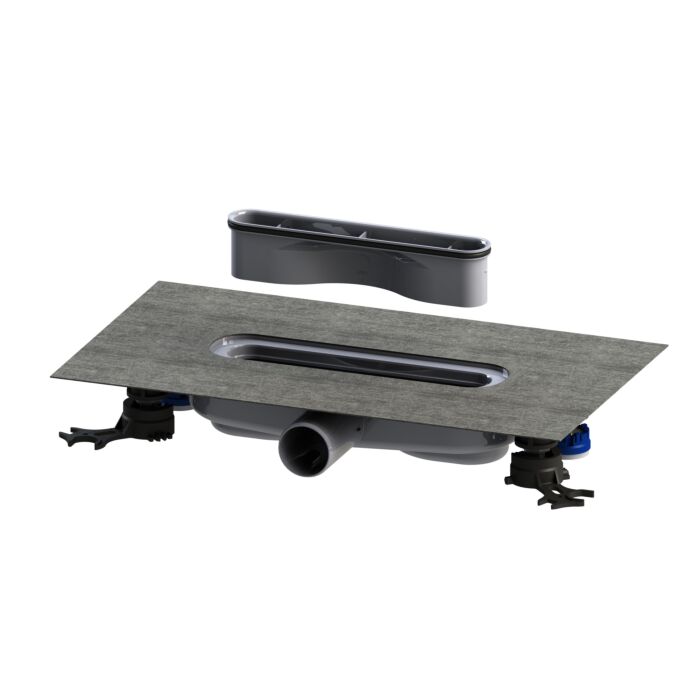

Kaldewei drain fitting FlowDrain 4204 687744810000 Horizontal Flat, drain fitting set for shower channels
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 100
Part Number: 687744810000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Kaldewei drain fitting FlowDrain 4204 687744810000
• Included in delivery: connection pipe, base body, floor fastening, height-adjustable feet, sealing sleeve, siphon, construction period protection.
• With sealing and sound insulation.
• With ISK key for height adjustment.
• Easily removable siphon for easy cleaning.
• Quick and easy installation.
• Low installation height: DN 40 with installation heights from 58 mm to 78 mm.
• Can be placed in front of the wall or directly on the wall with overall structure (silicone, tile, tile adhesive, sealant) from 14 mm to 20 mm.
• Discharge capacity according to DIN EN 1253 > 0.6 l/s with a required backflow height of 20 mm (sealing height 30 mm).
Downloads (3)
