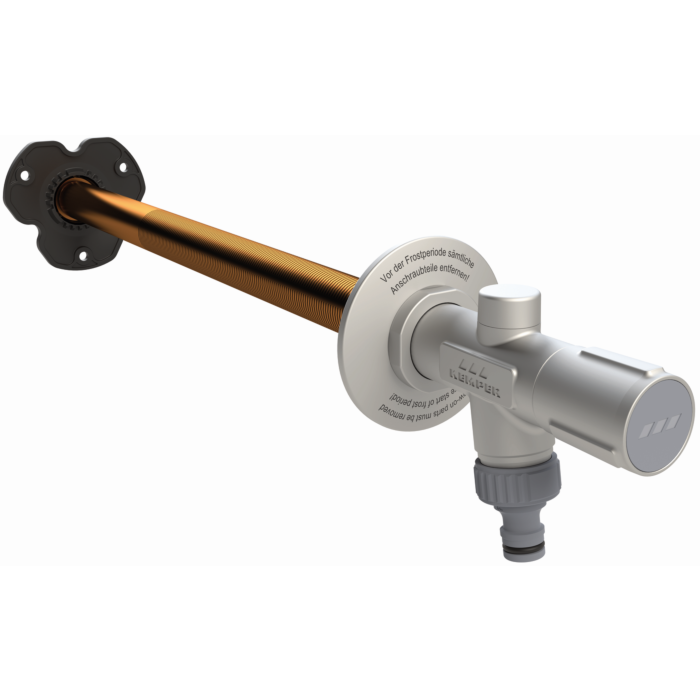

Kemper Frosti outdoor fitting 5780001500 DN 15, R 1/2, frost-proof, with handle, gunmetal
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 20
Part Number: 5780001500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Kemper Frosti outdoor fitting 5780001500
- Kit version
- suitable for shell installation and for subsequent installation on already completed exterior walls
- When closed, metal parts in contact with the medium are made of dezincification-free and corrosion-resistant gunmetal
- resistant to aggressive water
- Universal length for all common installation depths
- Inner top part for quick opening (two turns)
- Cone with internal RV spring
- EPDM seat seal
- extendable with optionally available extension set
- integrated RV and pipe vent as safety combination HD
- Input pipe external thread
- dead space free
- with hose coupling for common plug-in systems
- high flow rate up to 45 l / min (1 bar)
- with anti-theft functional aerator for automatic emptying
- Matt chrome-plated operating handle with over-twisting protection
- with fixed anti-twist protection
- with two-part wall panel for flush wall finish
- Outlet housing with mounting surfaces
- DVGW approval according to DIN EN 17821
- Plastic parts with KTW and W 270 approval
- according to UBA assessment basis
- Sound insulation approval according to DIN EN ISO 3822 Class 1
- EN 1717
- Min. installation depth 150 mm
- max. installation depth 415 mm
- Pressure level PN 16
- Max. operating temperature 65 °C
