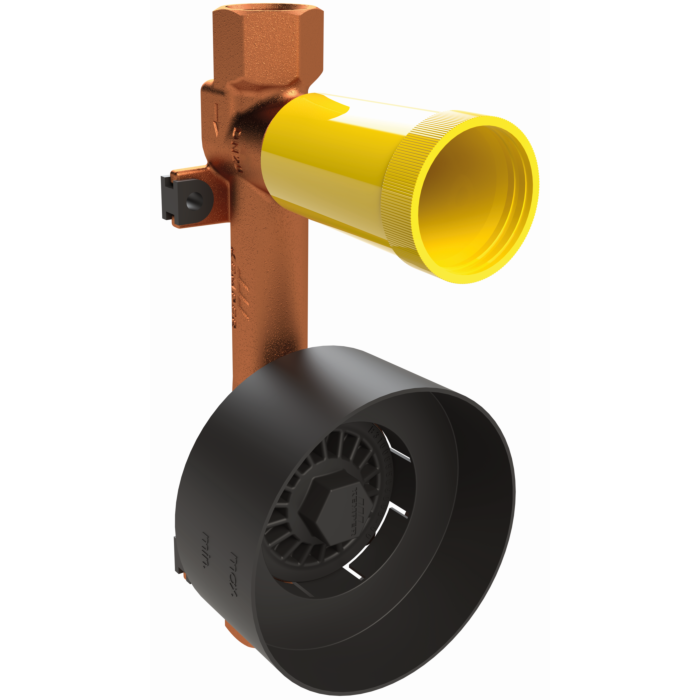

Kemper Rg120 shut-off Wasserzähler combination 8554702000 85547-HWW, Rp 3/4, DN 20, 234 mm
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 159
Part Number: 8554702000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Kemper Rg120 shut-off Wasserzähler combination 8554702000
- Wetted metal parts made from dezincification-free and corrosion-resistant gunmetal
- resistant to aggressive water
- with universal multi water meter housing G 2 coaxial according to HWW model
- Concealed valve and tool housing with plastered-in and overflow cap
- Installation depth variable within the installation dimensions of the water meter
- for installing a cold or hot water measuring capsule
- as a one-piece cast water meter line
- maintenance-free EPDM spindle seal
- dead space free
- Cast mounting feet with sound decoupling
- Concealed valve with DVGW approval
- Plastic parts with KTW and W 270 approval
- according to UBA assessment basis
- 2000 valve with sound insulation 2000 according to DIN EN ISO 3822 class 2000
- Pitch 120 mm
- PN 10
- Max. Operating temperature 70 ° C
- short-term peak temperature 95 ° C
