Kemper Weser free-flow shut-off valve 1732G04000 DN 40, G 2000 3/4, PN 16, red brass, with 2000
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 147
Part Number: 1732G04000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

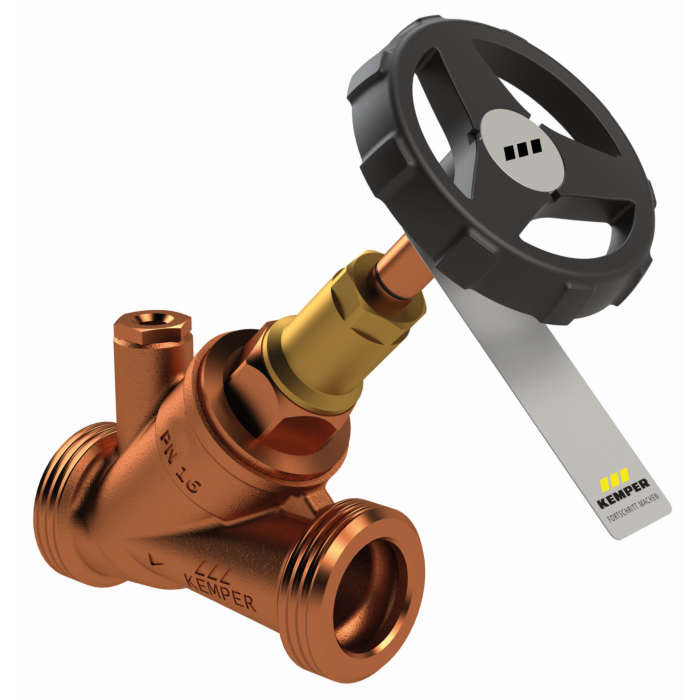

Kemper Weser free-flow shut-off valve 1732G04000
- Wetted metal parts made from dezincification-free and corrosion-resistant gunmetal
- resistant to aggressive water
- maintenance-free spindle seal with self-lubricating EPDM lip seal
- exchangeable under pressure
- EPDM seat seal
- Cone rotatably mounted
- secured against water hammer
- Radiator Fittings thread for flat- Radiator Fittings
- with the option of holding a Pt1000 or Thermometers temperature Thermometers using an optionally available immersion sleeve
- Spindle thread outside the medium
- wear-resistant valve seat made of Stainless Steel up to DN 50
- with red handwheel
- dead space free
- DVGW approval
- Plastic parts with KTW and W 270 approval
- according to UBA assessment basis
- up to DN 32 sound insulation 2000 according to DIN EN ISO 3822 class 2000
- DIN EN 1213
- Operating temperature 110 ° C
