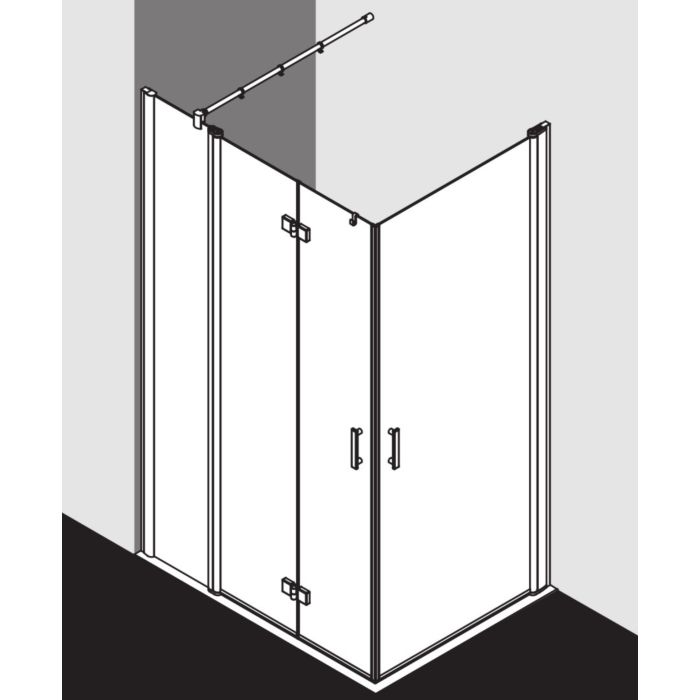

Kermi Diga entry half swing door with fixed field DIF2L10318VAK
  • can be combined with DI 2CR / L
  • DI 1ER / L and DI EPR / L corner entry halves
  • partially framed
  • with two glass wings - can be swiveled 90 ° inwards and outwards in the joint profile
  • swivels 180 ° outwards in the fitting joint - and a fixed field
  • with 90 ° stabilization inside (max. length 1220 mm)
  • Glass thickness 6 mm
  • Aluminum profiles
  • Metal fittings and handles
  • Adjustment in the wall profile 20 mm
  • Door profile and hinges with lifting-lowering mechanism - inside flush with the glass surface
  • continuous magnetic strip and sealing profiles
  • horizontal sealing strip in the form of a gutter
  • Can be installed with 6 mm threshold or without threshold (free of floor)
  • with fastening material and transparent towel rail hook
  • tested according to DIN EN 14428 (CE) and PPP 53005 (TÜV / GS)
  • the horizontal slope may be max. 5 mm
  • Height with wall joint profile 2017 mm
