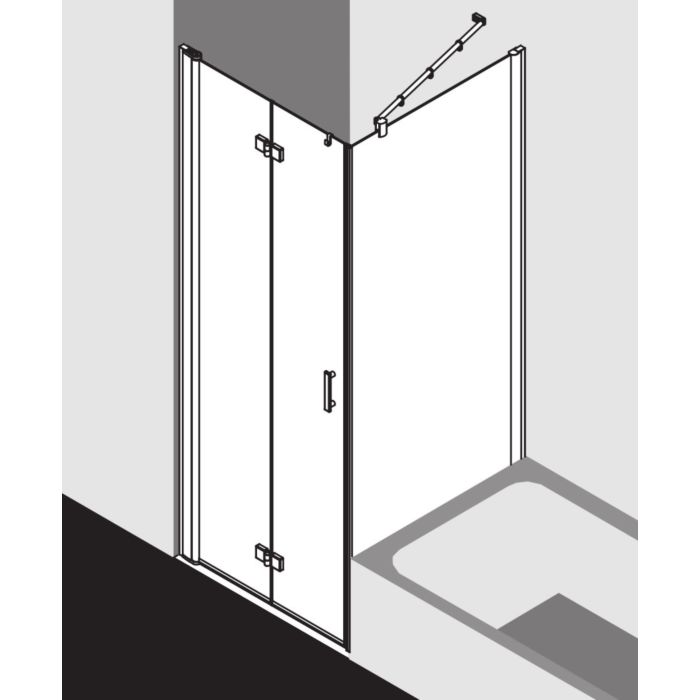

Kermi Diga folding door for side panel DI2SL09318VPK
  • locking side with DI TWD side wall / DI TVD side wall shortened next to bathtub / DI TBR / L side wall movable
  • partially framed
  • with two glass wings - can be swiveled 90 ° inwards and outwards in the wall joint profile
  • can be swiveled 180 ° outwards in the fitting joint
  • Glass thickness 6 mm
  • Aluminum profiles
  • Metal fittings and handles
  • Adjustment in the wall joint profile 20 mm
  • Wall joint profile and fitting joints with lifting-lowering mechanism - inside flush with the glass surface
  • continuous magnetic strips and sealing profiles
  • horizontal sealing strip in the form of a gutter
  • Can be installed with 6 mm threshold or without threshold (free of floor)
  • with fastening material and transparent towel rail hook
  • tested according to DIN EN 14428 (CE) and PPP 53005 (TÜV / GS)
  • the horizontal slope may be max. 5 mm
  • Height with wall joint profile 2017 mm
