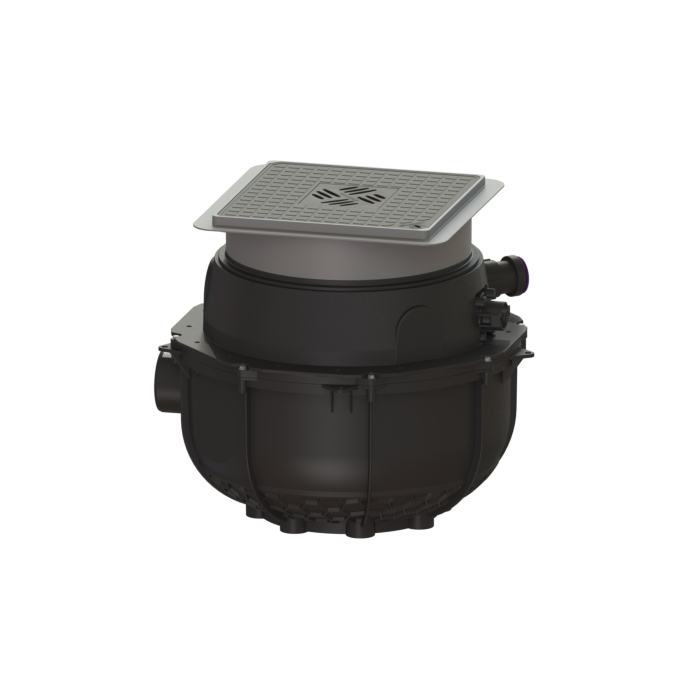

Boiler Aqualift S lifting system 280500SC GTF 500-S1 resistant, black, for installation in base plate, 230 V

Boiler Aqualift S lifting system 280500SC

• plastic
• with free-flow impeller
• a pump type GTF
• removable
• Float circuit
• System ready to plug in
• Socket for inlet and cable conduit
• Telescopic attachment piece with integrated drain function and flange for sealing in the composite
• Pressure line DN 32/DA 40
• Pump GTF 500 usable volume 16 l/flow rate max. 10 cbm/h/delivery height max. 8 m
• Pump GTF 1200 usable volume 16 l/flow rate max. 155 cbm/h/delivery height max. 9 m
• Pump GTF 500 resistant resistant to saline media/wastewater from softening systems as well as condensate-containing wastewater from heating systems
• Class K 3
• Cable length 5 m
• Installation depth 490-620 mm
• Recess dimensions 700 × 700 mm
