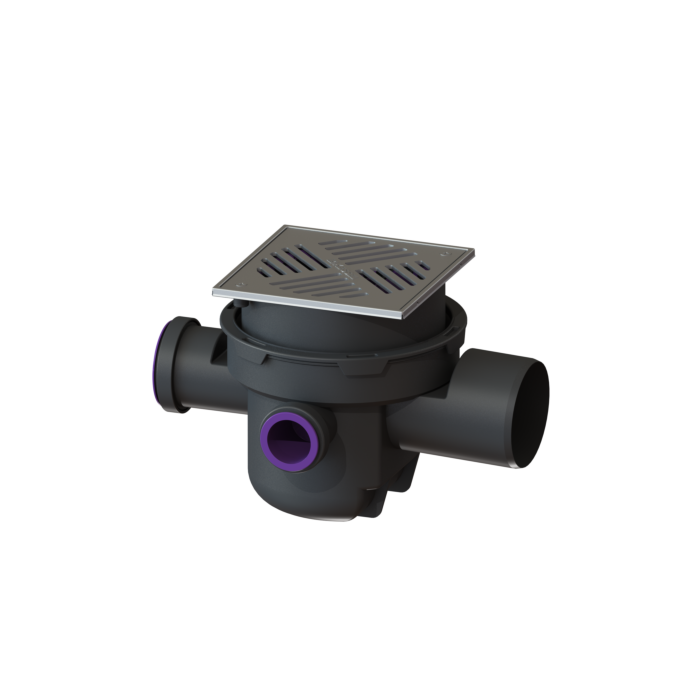

Kessel cellar Kessel The universal 27621 DN 100, slotted grate, plastic, black

Kessel drain DN 100 KE27621 universal grate 200x200 Stainless Steel Kessel drain "The universal" made of plastic (PP), with removable backflow double lock and hand-lockable emergency lock, odor trap height 60 mm, with sludge 2000 , drainage 2000 , 8 l / s, two inlets DN 50 and an inlet DN 70 with blind plug. Top section made of plastic with grate frame made of Stainless Steel , telescopic height adjustable from 20 mm to 65 mm, slotted Stainless Steel made of Stainless Steel screwed. Design: cellar drain with backflow trap standard: DIN EN 13564 type 5 dimension: DN 100 (OD 110 mm) outlet: 2.5 degrees (side) inlets: with three inlets attachment piece: plastic grate frame / slotted Stainless Steel : Stainless Steel grate size: 200 x 200 mm load class : K3 (300 kg)
