Kessel shower channel 45600.66M
  • made of ABS
  • Spout on the side DN 50
  • with odor trap
  • Barrier water height 22 mm
  • Cover and Rahmen from Stainless Steel V2A (can be tiled when inserted)
  • Class K 3
  • with leachate openings
  • for covering thicknesses of 15 mm
  • with factory-fitted sealing sleeve
  • according to DIN EN 1253- 2000
  • 1930
  • 5 l / s without accumulation
  • 1930
  • 6 l / s with 10 mm build-up

Technical Data Chevron Down

material Edelstahl
length 1050 mm
width 191 mm
product class shower drain
model Compact
series LINEARIS
drainage capacity 0.7L/s
External pipe diameter 50 mm
Wide grids 66mm
Grid length 1050mm
Water seal height 22mm
Suitable for concrete floor Yes
form rectangular
Nominal diameter connection DN 50
material grid stainless steel
Lockable no
Material quality channel Stainless steel 304 (1.4301)
Height 80

Series (19)

Kessel shower channel 45300.08 800 mm, Stainless Steel brushed, Megastop
Kessel shower channel 45300.08 800 mm, Stainless Steel brushed, Megastop
€332.72
instead of €726.14 **
-54% You're saving €393.41
Incl. 19% VAT , plus shipping costs
In Stock delivery time: 1-3 working days
Kessel shower channel 45300.09 900 mm, Stainless Steel brushed, Megastop
Kessel shower channel 45300.09 900 mm, Stainless Steel brushed, Megastop
€345.93
instead of €749.65 **
-54% You're saving €403.72
Incl. 19% VAT , plus shipping costs
In Stock delivery time: 1-3 working days
Kessel shower channel 45304.10 1000 mm, brushed bronze, Megastop
Kessel shower channel 45304.10 1000 mm, brushed bronze, Megastop
€601.39
instead of €1,348.16 **
-55% You're saving €746.77
Incl. 19% VAT , plus shipping costs
Available for order delivery time: 10-28 working days
Kessel shower channel 45200.16 1600 mm, Stainless Steel brushed, 50mm water seal
Kessel shower channel 45200.16 1600 mm, Stainless Steel brushed, 50mm water seal
€424.28
instead of €939.02 **
-55% You're saving €514.73
Incl. 19% VAT , plus shipping costs
Available for order delivery time: 10-28 working days

Product Safety Chevron Down

Manufacturer
KESSEL SE & Co. KG
E-Mail
info@kessel.de
Address
Bahnhofstraße 31
85101 Lenting
Germany
** Average Wholesale Price

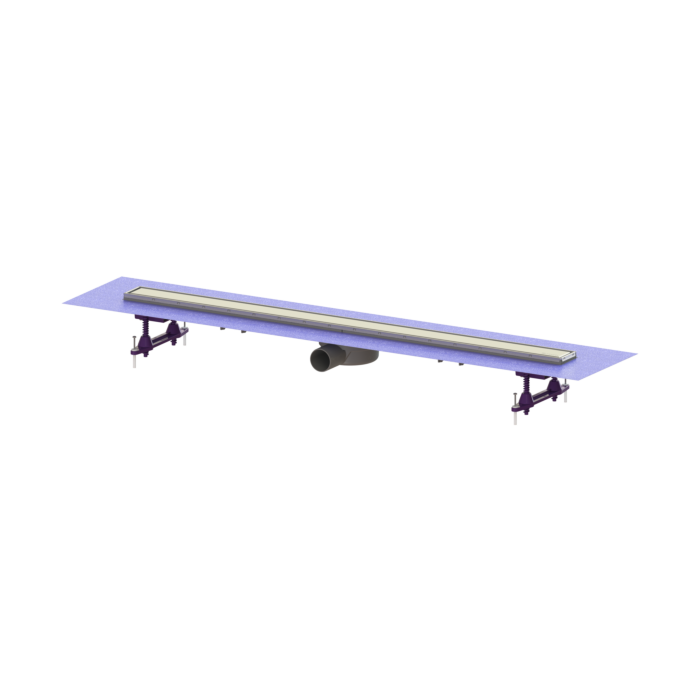

Kessel shower channel 45600.66M 1050mm, with sealing sleeve, drain body
