Mepa IR Urinal automatic dishwasher 718246 white, battery operation
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 75
Part Number: 718246
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

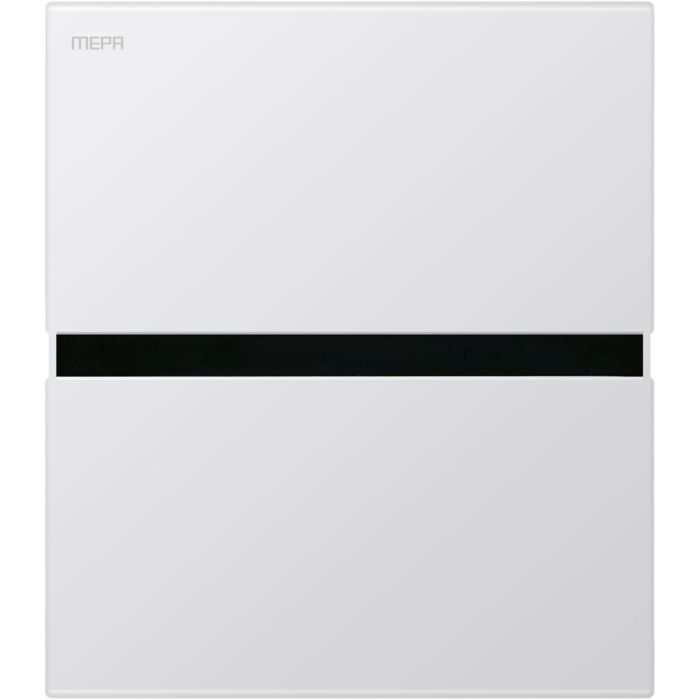

Mepa IR Urinal automatic rinsing 718246
- Contactless / infrared controlled urinal flush system
- vandal-proof
- for flush mounting
- Die-cast zinc front panel 130 x 150 x 10 mm
- Infrared proximity electronics
- Degree of protection IP44
- 6 V battery operation
- Battery module with 6 volt lithium battery type CR-P2
- Solenoid valve 6 V with sieve
- Operating pressure 1930
- 5-8 bar
- Membrane keyboard for setting basic functions
- IR remote control SC 900 for function settings
- Flow 1930
- 3 l / s at 2000 bar ( 1930
- 5 l / s at 2 bar flow pressure)
- Flushing time adjustable from 2-10 s (presetting 6 s)
- Dwell time 5 s
- optional pre-purge adjustable 1930 -6 s
- Hygienic flushing with interval and flush volume function: interval time adjustable from 24 h to 240 h (in 24 h steps)
- Flush volume adjustable from 9-90 l
- automatic flush volume optimization
- Adjustable response range (presetting approx. 50 cm in front of the wall)
- also suitable for Urinals with lid
- The basic functions pre-purge / main purge / response range can be set / changed via the membrane keyboard
- The additional functions hygienic flush / dynamic flush volume / flush stop / flush / close range can be set / changed via the SC 900 IR remote control
