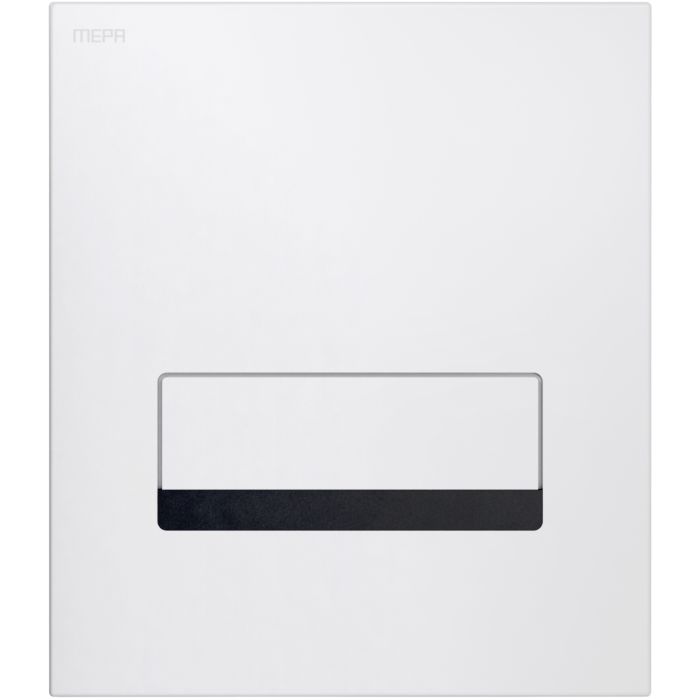

Mepa MEPAorbit single urinal flush system 718277 white, mains operation, 230/24 V
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 110
Part Number: 718277
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Mepa MEPAorbit single urinal flush system 718277
- contactless / infrared Urinal match1 washing system
- vandal-proof
- for flush mounting
- Die-cast zinc front plate 131 x 150 x 10 mm
- Infrared proximity electronics
- Protection class IP44
- Safety power supply 110-240 / 24 VAC according to EN 60730
- Solenoid valve 24 volts with sieve
- Operating pressure 1930
- 2-10 bar
- IR remote control SC 900 for function settings
- Flow 1930
- 3 l / s at 2000 bar ( 1930
- 5 l / s at 2 bar flow pressure)
- Flushing time adjustable from 2-10 s (presetting 6 s)
- Dwell time 5 s
- Hygienic flush with interval and flush volume function (interval time adjustable from 24 h to 240 h (in 24 h steps)
- Flush volume adjustable from 9-90 l)
- automatic flush volume optimization
- Adjustable response range (presetting approx. 50 cm in front of the wall)
- also suitable for Urinals with lid
- The basic functions pre-purge / main purge / response range can be set / changed via the membrane keyboard
- The additional functions hygienic flush / dynamic flush volume / flush stop / flush / post-area can be set / changed via the SC 900 IR remote control
