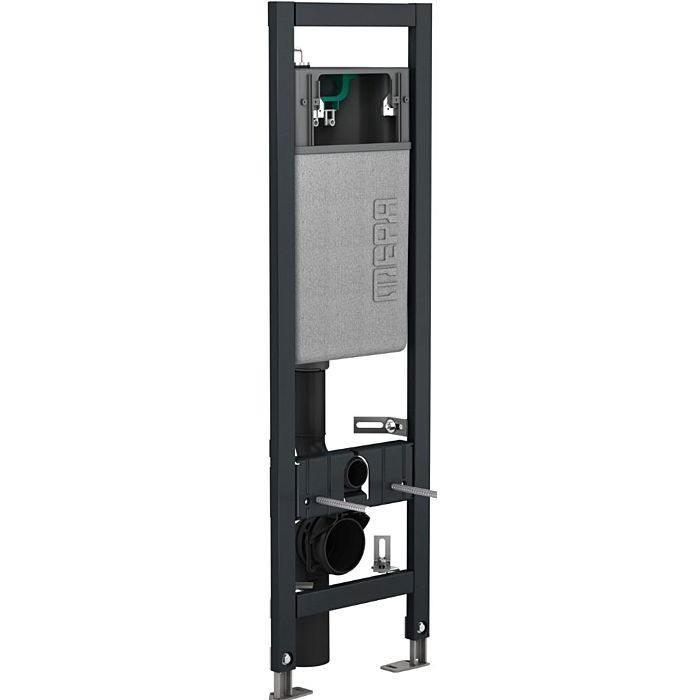

Mepa nextVIT corner toilet element 514823

  • pre-assembled for wall-mounted toilet
  • for drywall installation in a corner of the room
  • for individual installation in front of a solid wall
  • system height 1200 mm
  • self-supporting mounting frame
  • suitable for paneling with gypsum fiber or plasterboard
  • powder-coated profile frame
  • height-adjustable footrests 0-190 mm
  • UP-Circuit Sanicontrol Type E31
  • 2-volume or 1-volume or start/stop flushing technology
  • cistern completely pre-assembled
  • Testing and CE marking according to DIN EN 14 055
  • water connection top left
  • Flush volume 6/3 l (factory setting)
  • Flushing volumes can be adjusted in parallel (large flushing volume 6-7.5 l continuously variable small flushing volume 3-4.5 l continuously variable)
  • maximum flushing volume 7.5 l
  • immediate rinsing possible with factory setting
  • mechanical operation from the front
  • WC connection bend 3-way depth adjustable
  • Connection of shower-toilet systems possible
  • Scope of delivery: Water connection G 1/2 A with integrated angle valve and handwheel
  • PE wall-mounted toilet connection bend DN 90
  • PE wall-mounted toilet connection fitting DN 90
  • PE transition piece DN 90/110
  • wall-mounted toilet mounting set M12
  • construction protection box for inspection opening
  • 2x protective plugs
