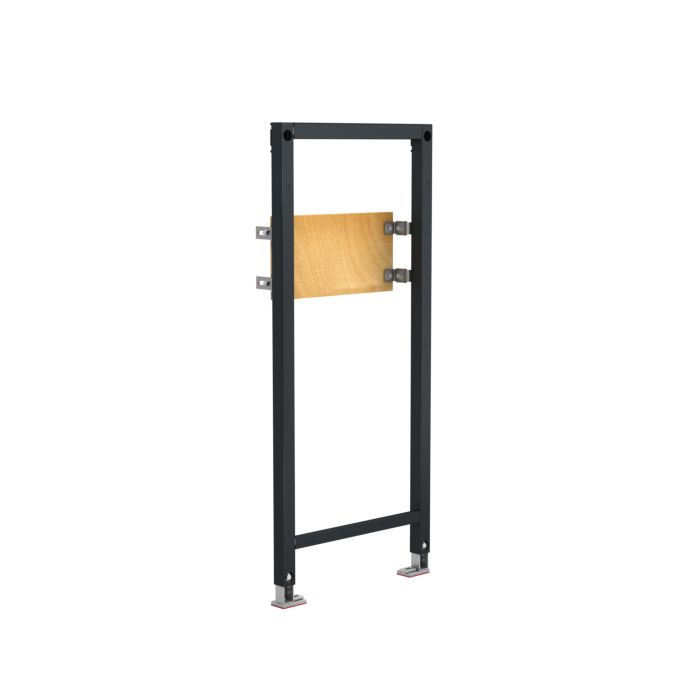

Mepa nextVIT element 549015 for concealed shower/bathtub fitting, system height 120 cm

Mepa nextVIT element 549015

• pre-assembled assembly element
• for drywall installation
• for individual installation in front of a solid or lightweight stud wall
• for rail mounting in front of a solid or lightweight stud wall
• self-supporting mounting frame
• suitable for cladding with gypsum fiber or gypsum plasterboard
• powder-coated profile frame
• Height-adjustable footrests 0-240 mm with integrated slip resistance
• Base plates can be rotated (compensating for drilling errors
• Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile)
• Center and meter markings for exact alignment of the axis center and installation height of the element
• Tool-free, height-adjustable, non-slip concealed fitting plate (depth adjustable from 80-160)
• Concealed fitting panel plywood panel 390 x 200 x 21 mm
• Foot extension set 175 mm and fastening material
