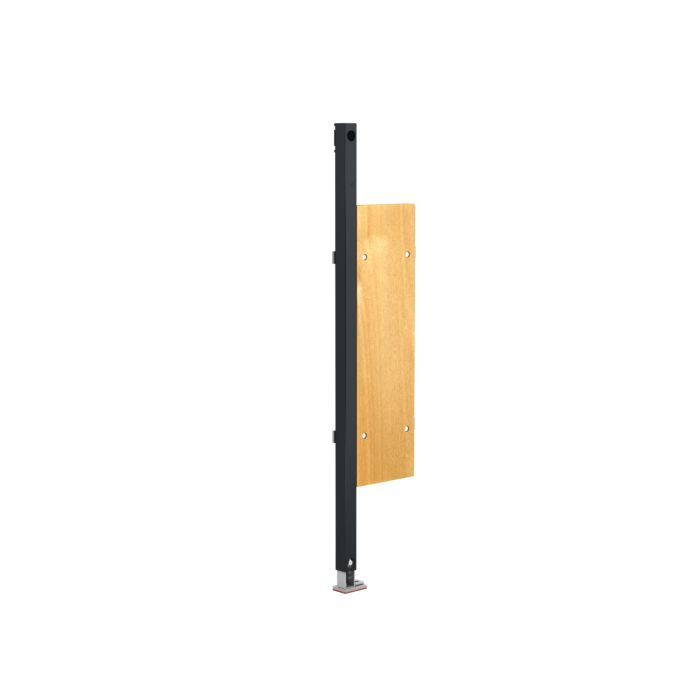

Mepa nextVIT support/folding support rail element 549016 system height 120 cm

Mepa nextVIT support/folding support bar element 549016

• Pre-assembled mounting element for support or folding support handles
• for drywall installation
• for individual installation in front of a solid or lightweight stud wall
• for rail mounting in front of a solid or lightweight stud wall
• for assembly in accordance with DIN 18 040
• self-supporting mounting element
• suitable for cladding with gypsum fiber or gypsum plasterboard
• powder-coated support
• Height-adjustable footrest 0-240 mm with integrated slip resistance
• Base plate can be rotated (compensates for drilling errors
• Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile)
• Meter markings for exact alignment of the installation height of the element
• Accessories mounting set for individual installation in front of solid walls and for installation in lightweight stud walls (item no. 541 025) - please order separately - not included in delivery
• Scope of delivery: 1x support
• Plywood board 200 x 690 x 38 mm and fastening material
