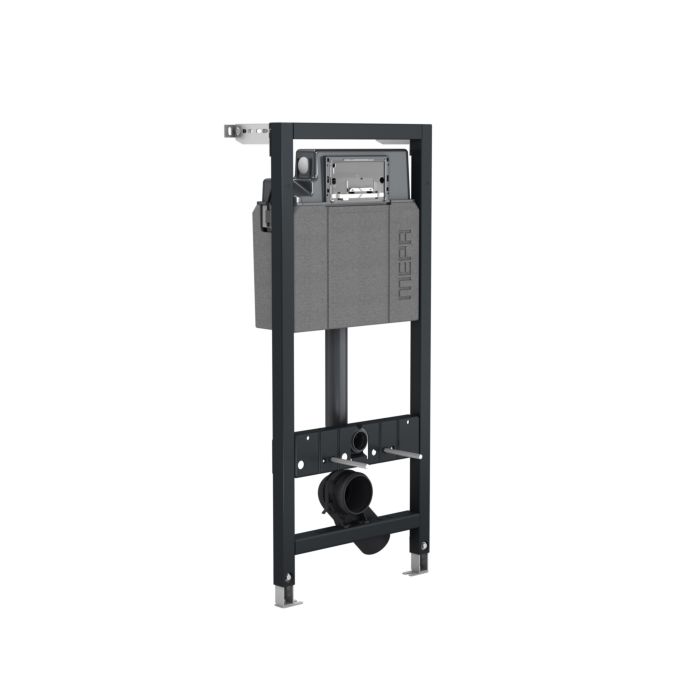

Mepa nextVIT toilet element 512330 object, system height 120 cm

Mepa nextVIT toilet element 512330

• Pre-assembled mounting element for wall-hung toilet
• for drywall installation
• for individual installation in front of a solid or lightweight stud wall
• for rail mounting in front of a solid or lightweight stud wall
• self-supporting mounting frame
• suitable for cladding with gypsum fiber or gypsum plasterboard
• powder-coated profile frame
• Height-adjustable footrests 0-240 mm with integrated slip resistance
• Rotatable footplates
• Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA expansion profile
• Center and meter markings for exact alignment of the axis center and installation height of the element
• Concealed cistern Sanicontrol type P31
• 2-volume or 1-volume or start/stop flushing technology
• Cistern completely pre-assembled
• Testing and CE marking in accordance with DIN EN 14 055
• Water connection on the left or rear
• Flush volume 6/3 l (factory setting)
• Flush volumes can be adjusted in parallel (large flush volume 6-7.5 l continuously variable small flush volume 3-4.5 l continuously variable)
• max. flushing volume 7.5 l
• With factory settings, immediate rinsing is possible
• insulated from sweat water
• mechanical operation from the front
• Toilet connection elbow 3-way depth adjustable
• Connection to shower-toilet systems possible
• Water connection G 1/2 A with integrated angle valve and handwheel
• PE wall toilet connection elbow DN 90
• PE wall-mounted toilet connection set DN 90/110
• Wall toilet mounting set M 12
• Building protection box for inspection opening
• 2 protective plugs
