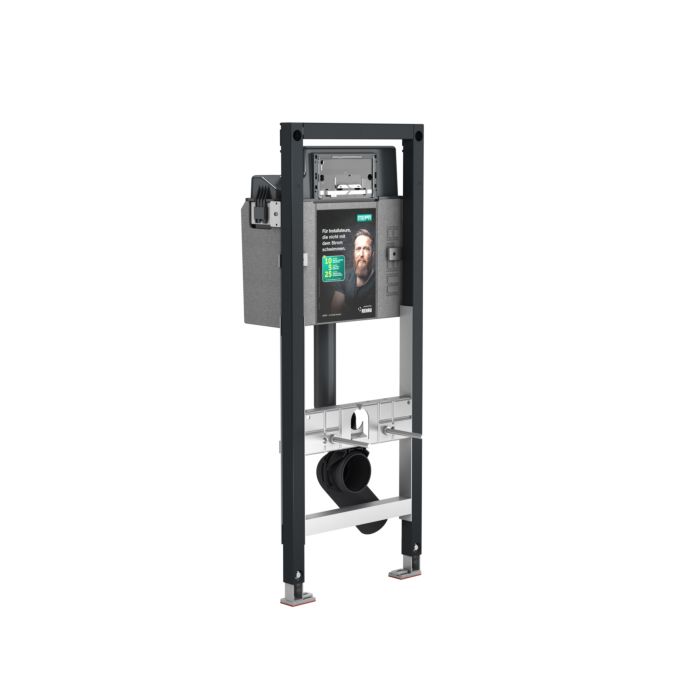

Mepa nextVIT WC element 513110 concealed cistern 6 l, barrier-free, system height 120 cm

Mepa nextVIT toilet element 513110

• pre-assembled mounting element for barrier-free wall-mounted toilet
• for installation according to DIN 18 040
• for installation of toilet ceramics with extended projection up to 700 mm
• for drywall installation
• for individual installation in front of a solid or in a stud wall
• for rail mounting in front of a solid or lightweight stud wall
• self-supporting mounting frame
• suitable for paneling with gypsum fiber or plasterboard
• powder-coated profile frame
• height-adjustable footrests 0-240 mm with integrated anti-slip
• Rotatable base plates (compensates for drilling errors
• Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile)
• Center and meter line marking for exact alignment of the axis center and installation height of the element UP-Cistern Sanicontrol Type A31
• 2-volume or 1-volume or start/stop flushing technology
• cistern completely pre-assembled
• Testing and CE marking according to DIN EN 14 055
• water connection left or rear
• Flush volume 6/3 l (factory setting)
• Flushing volumes can be adjusted separately (large flushing volume 5-7 l continuously variable/small flushing volume 3-4.5 l continuously variable)
• maximum flushing volume 7.5 l
• immediate rinsing possible with factory setting
• integrated flush flow throttle for continuous reduction of the flush flow from approx. 2.2 l/s (min. throttling) to approx. 1.8 l/s (max. throttling)
• condensate-insulated
• mechanical operation from the front
• WC connection bend 3-way depth adjustable
• Connection of shower-toilet systems possible
• preset for seat height 48 cm
• Water connection G 1/2 A with integrated angle valve and handwheel
• PE wall-toilet connection bend DN 90
• PE wall-mounted toilet connection fitting DN 90
• PE transition piece DN 90/110
• wall-mounted toilet mounting set M12
• construction protection box for inspection opening
• 2x protective plugs
