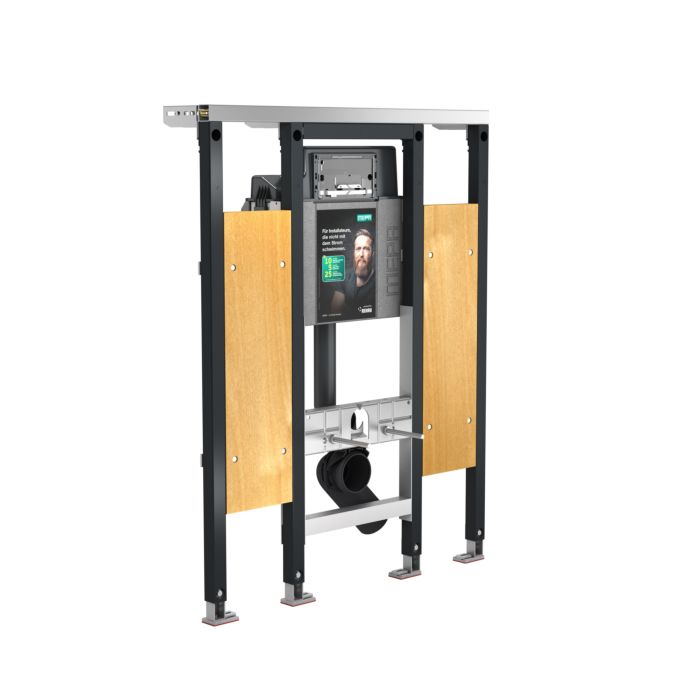

Mepa nextVIT toilet element 513111 concealed cistern 6 l, barrier-free, for folding support handle, system height 120 cm

Mepa nextVIT toilet element 513111

• Pre-assembled mounting element for barrier-free wall-hung toilet
• for assembly in accordance with DIN 18 040
• for installing toilet ceramics with an extended projection of up to 700 mm
• for mounting support or folding support handles
• for drywall installation
• for individual installation in front of a solid or lightweight stud wall
• for rail mounting in front of a solid or lightweight stud wall
• self-supporting mounting frame
• suitable for cladding with gypsum fiber or gypsum plasterboard
• powder-coated profile frame
• Height-adjustable footrests 0-240 mm with integrated slip resistance
• Base plates can be rotated (compensating for drilling errors
• Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile)
• Center and meter markings for exact alignment of the axis center and installation height of the element
• Concealed cistern Sanicontrol type A31
• 2-volume or 1-volume or start/stop flushing technology
• Cistern completely pre-assembled
• Testing and CE marking in accordance with DIN EN 14 055
• Water connection on the left or rear
• Flush volume 6/3 l (factory setting)
• Flushing volumes can be adjusted separately (large flushing volume 5-7 l continuously/small flushing volume 3-4.5 l continuously)
• maximum flushing volume 7.5 l
• With factory settings, immediate rinsing is possible
• Integrated flushing flow throttle for continuous reduction of the flushing flow from approx. 2.2 l/s (min. throttling) to approx. 1.8 l/s (max. throttling)
• insulated from sweat water
• Water connection G 1/2 A with integrated angle valve and handwheel
• PE wall toilet connection elbow DN 90
• PE wall-mounted toilet connection set DN 90
• PE transition piece DN 90/110
• Wall toilet mounting set M12
• Building protection box for inspection opening
• 2x protective plugs
• 2x plywood panels 200 x 690 x 38 mm
