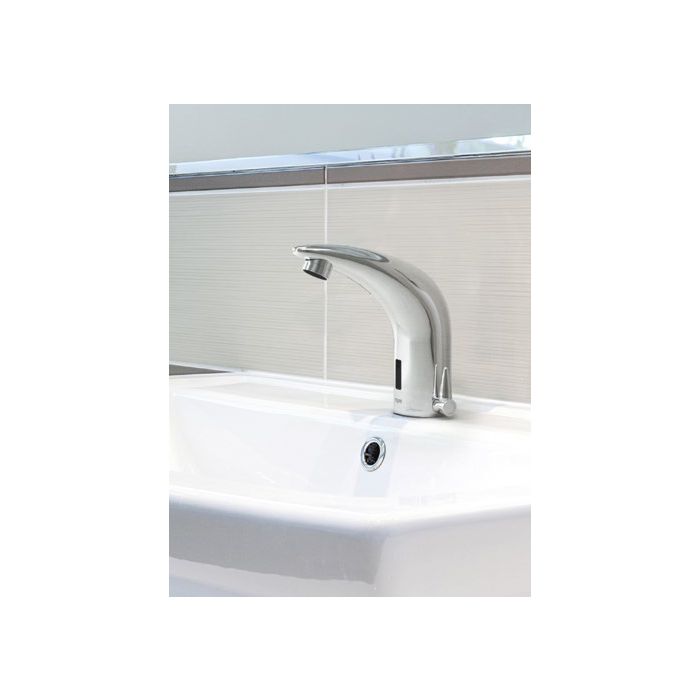

Mepa washbasin tap 718842 mains operation, 230 VAC/6 VDC, IP 40, cold water/warm water
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 150
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Mepa mixer 718842
- non-contact
- infrared-controlled washbasin faucet with mixer lever
- for drawing cold and warm tap water from the drinking water network
- Area of application indoors
- 154x153x53mm
- projection 105 mm
- for punching Ø 35 mm
- for mounting on a washbasin or worktop (thickness 801 -40 mm)
- made of brass with a chrome finish
- Fitting group I according to DIN EN 200
- Degree of protection IP 55
- for stand assembly
- Flow limiter 6 l/min
- vandal proof
- Strahlregler M24
- Infrared proximity electronics
- bistable solenoid valve 6 V
- Working pressure 1930
- 5-8 bars
- max. outlet temperature 60 °C
- Follow-up time adjustable by 1930
- 5-10 s (factory 2000 s)
- automatic run-out stop adjustable from 60-180 s (factory setting 60 s)
- switchable periodic hygiene flushing (adjustable in 10 interval levels from 24-240 h)
- Duration of hygiene flush adjustable from 30-120 s
- Cleaning stop duration 60 s
- adjustable functions via Sanicontrol remote control SC 900 (overrun time
- leakage stop
- hygiene rinse
- response range)
- suitable for stainless steel pools
- retrofittable
- Temperature adjustable via mixer lever
- without drain fitting
- suitable for flameproof electronic Continuous-Flow Water Heater
- not suitable for pressure-resistant hydraulic Continuous-Flow Water Heater
- Scope of delivery: 1x fitting with integrated infrared proximity electronics and solenoid valve
- fastening material
- 2x flexible connection hoses R 3/8 (length 400 mm)
- 2x Check Valves
- 2x dirt trap screens
- 2x flat gaskets 3/8"
- 1x plug-in power supply unit 230 VAC/6 VDC Art . no. 718 842 / 1x battery device 6 VDC
- Protection class IP 65 (for mounting under the washbasin) and 4x batteries type LR6 2000
- 5 V- Art -No. 718 843
- 1x assembly key for Strahlregler
- 1xSanicontrol remote control SC 900
