Möhlenhoff Alpha-Regler direct 230V, R 20203-10N4 Analog 230V Analog 230 V: Heating, fixed setback temperature, setback input, setpoint calibration, frost protection
Details

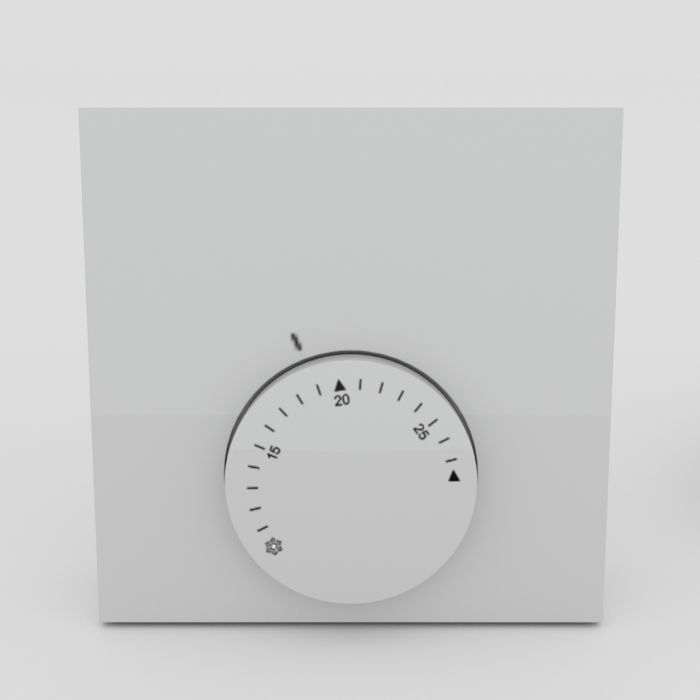

Möhlenhoff Alpha controller direct 230V, R 20203-10N4 Analogue 230V
The Möhlenhoff Alpha Controller direct Analog is a high-quality room temperature controller for detecting and regulating the desired room temperature.
Simple individual room control is possible even with directly connected actuators. In conjunction with the OEM Alpha Basis direct connection unit, a perfectly coordinated overall system for surface temperature control can be created. The desired room temperature is set using the rotary knob with soft detent. Setpoint calibration and a limitation of the setting range are also possible. possible.
The OEM Alpha Regulator Analog receives its supply voltage directly via the OEM Alpha Basis direct or a separate voltage source.
• Flat design and small dimensions
• Standalone or system-based control
• Equipment for heating systems
• Reduction input for time-controlled reduction of the room temperature, for example via an external system clock
• Setpoint calibration
• Limitation of the temperature range by additionally available setpoint limiters
• Frost protection function
• Simple, intuitive installation and operation
• High functional reliability
• Maintenance-free
Operating voltage: 230 V ±10 % 50 Hz
Power supply: via base/external power supply
Protection class: IP 20
Protection class: II
Switching capacity: 2 A resistive load, 200 VA inductive
Setting range target temperature: 10 °C to 28 °C
Resolution of target temperature setting: 0.25 °C
Setback temperature: 4 °C
Max. connectable actuators: 10 (max, 3 W/actuator)
Connection terminals: 5 screw terminals – 0.22 mm² to 1.5 mm²
Material: PC + ABS
Color: Signal white (RAL 9003)
Dimensions (W x H x D): 86 x 86 x 29 mm
• OEM Alpha Regulator direct Analog in individual packaging
• Instructions in 12 languages
Technical features
- Display: No
- Voltage: 230 V
- Sense of action: NC
