Möhlenhoff Alpha-Regler direct 230V St., RD 20203-11N4 230 V Triac Standard 230 V: Heating, fixed reduction difference, reduction input, for actuators with NC direction of action

Möhlenhoff Alpha regulator direct 230V St., RD 20203-11N4 230 V Triac

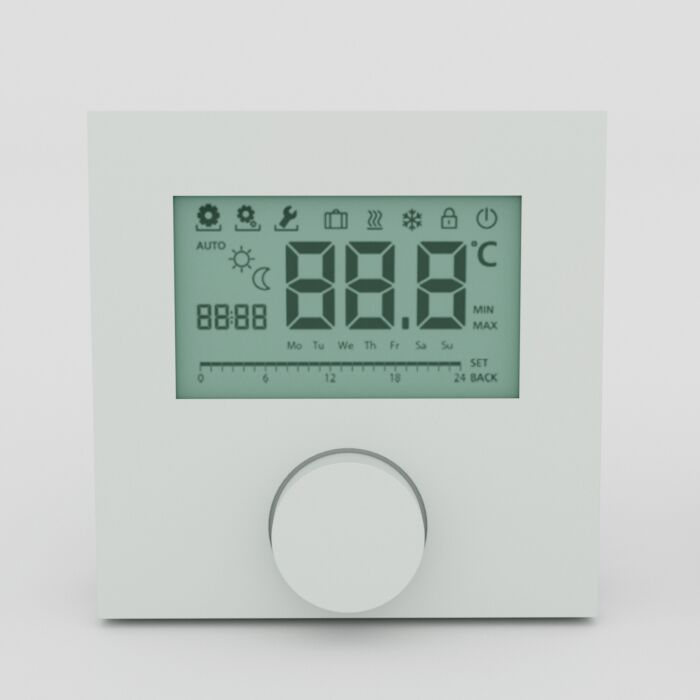

The Alpha Controller direct Display is a high-quality room temperature controller for detecting and regulating the desired room temperature.

Simple individual room control is possible even with directly connected actuators. In conjunction with the Alpha Basis direct connection unit, a perfectly coordinated overall system for surface temperature control can be created.

The desired room temperature is set and the device is operated using the rotary knob with a rotary push mechanism and soft locking mechanism. The symbols are always clearly displayed on the clear and language-neutral display of the high-quality screen.

The Alpha Controller direct Display receives its supply voltage via the Alpha Basis direct or a separate voltage source.

• Flat design and small dimensions

• Standalone or system-based control

• Large, clear LC display with additional backlighting

• Equipment for heating systems

• Different operating modes

• Fixed setback difference

• Reduction input for time-controlled reduction of the room temperature, for example via an external system clock

• Correction of actual temperature detection

• Target temperature limit

• Valve protection function

• Frost protection function

• additionally available high-quality design screen made of scratch-resistant plastic

• Suitable for actuators with NC action (NC: normally closed)

• Simple, intuitive installation and operation

• High functional reliability

• Maintenance-free

Operating voltage: 230 V ±10 % 50 Hz

Power supply: via base/external power supply

Protection class: IP 20

Protection class: II

Switching capacity: 2 A resistive load, 200 VA inductive

Setting range target temperature: 10 °C to 28 °C

Resolution of target temperature setting: 0.25 °C

Setback temperature: 4 °C

Max. connectable actuators: 10 (max, 3 W/actuator)

Connection terminals: 5 screw terminals – 0.22 mm² to 1.5 mm²

Material: ABS

Color: Pure white

Dimensions (W x H x D): 86 x 86 x 31 mm

• OEM Alpha Controller direct display in individual packaging

• Instructions in 12 languages
