Oventrop Regtronic heating circuit controller 1152083 with 2000 external and 3 additional sensors
Short notice delivery
delivery time: 10-28 working days
Shipping Cost Points: 150
Part Number: 1152083
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

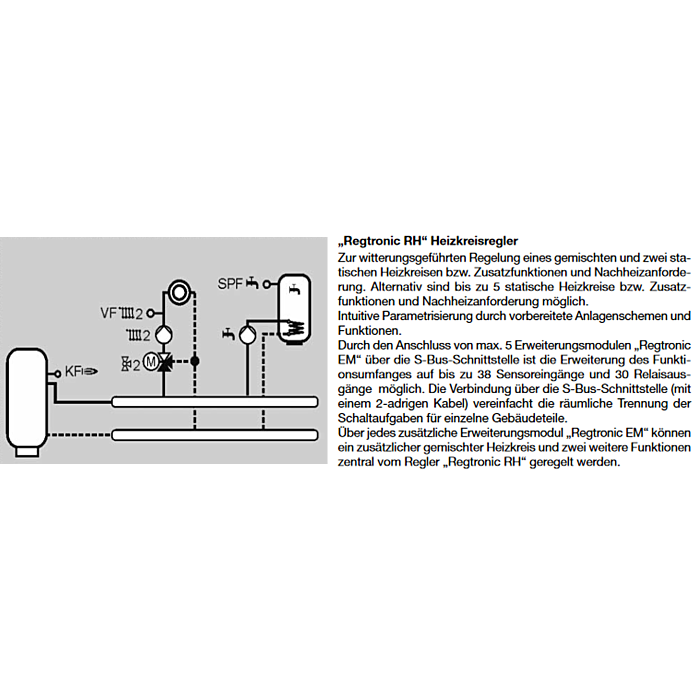

Oventrop Regtronic heating circuit controller 1152083
- Regumat control of the heating Regumat via the request of a heat generator and / or a mixer (e.g. " Regumat M3" or "Regufloor HW" with three-way mixer) Controller for wall mounting with data bus (S-Bus) for connection to the data logger "CS-BS "
- consisting of: 2000 mixed and 2000 unmixed heating circuit with heat demand
- expandable with " Regtronic EM"
- the status is visualized on a full graphic display
- Interfaces are S-Bus (connection option to data logger "CS-BS")
- SD card slot for data recording
- In addition, a central outside sensor can be connected to the heating circuit controller
- 8 inputs sensor inputs (PT1000
- KTY
- Switch or remote adjuster)
- 2 inputs for electronic VFD volume flow sensor (volume flow / temperature)
- Outputs: 3 semiconductor relays (speed controlled)
- 2 standard relays
- 2000 potential-free extra-low voltage 2000
- 2 PWM outputs for the speed-controlled control of high-efficiency pumps
- the two PWM outputs can be switched to 1930 - 10 V.
