Oventrop Unibox return temperature control 1022731 white, with valve and return Oventrop Unibox
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 1022731
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

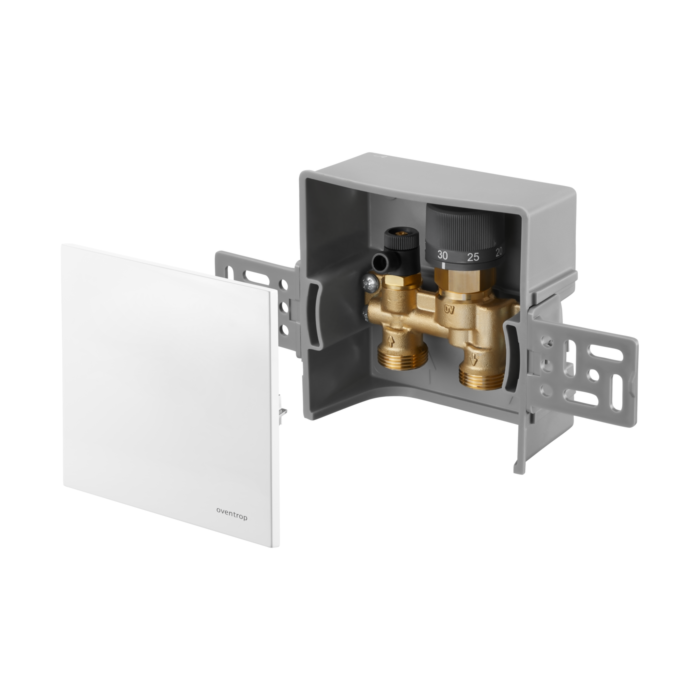

Oventrop Unibox return temperature control 1022731
- for combined use in heating systems with radiator operation
- consisting of: wall box with thermostatic valve
- integrated return temperature limiter
- Vent and flush valve
- Cover with integrated handwheel
- for the integration of a surface temperature control in central heating systems with closed circuits
- for operation with non-aggressive
- non-hazardous liquids
- Max. Operating pressure ps: 10 bar (PN 10)
- Operating temperature ts: 2-100 ° C
- Set point range: 20-40 ° C (return temperature)
- Cover with integrated handwheel for angle and depth compensation
- Valve with G 3/4 pipe connection according to DIN EN 16313 (Eurocone) for compression fitting
- Cover real glass: 155 x 155 x 6 mm
- White cover: 155 x 155 x 8 mm
Downloads (1)
** Average Wholesale Price
