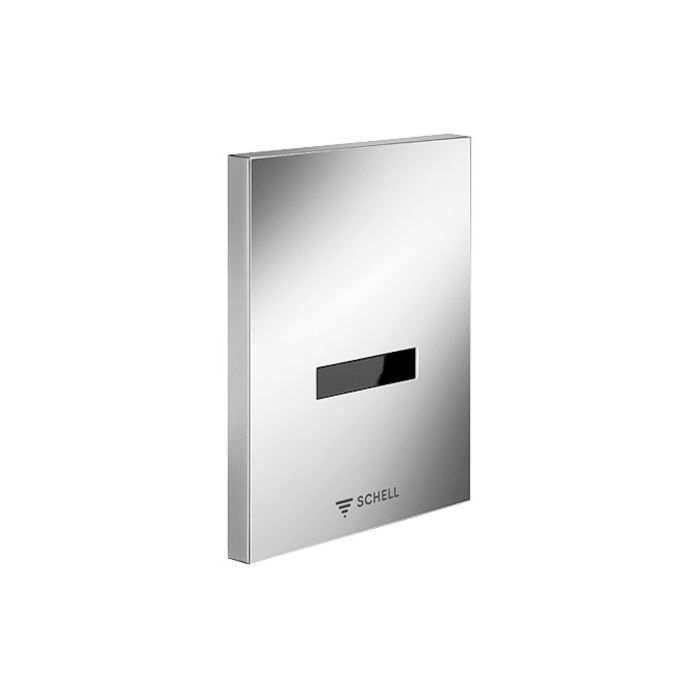

Schell Edition e trim set 028061599
  • contactless infrared Sensor flushing device
  • for Urinal - Flush Valve COMPACT II
  • Battery operated
  • suitable for networking with the SWS water management system
  • parameterizable via Single Control SSC
  • with front panel with infrared sensor window
  • Solenoid valve 6 V with pre-filter
  • Sensor frame with infrared match2 electronics
  • programmable
  • Battery compartment 6 V
  • Protection class IP 65
  • 4x AA alkaline batteries 2000
  • 5 V
  • Setting options via SWS / SSC
  • Programming via near reflex (off / on)
  • Sensor range (short / medium / long)
  • Flushing time ( 2000 - 15 s)
  • Stagnation flush (Off / 5 - 600 s
  • all 2000 - 240 h after the last rinse / all 2000 - 240 h)
  • Pre-purge (Off / 2000 s
  • Blocking time 5 - 60 min after the last rinse)
  • automatic stadium operation (off / 1s per user
  • Main flush after 20 - 60 s after last use)
  • 2000 trap flushing (Off / match4 - 240 h after the last flush)
  • Energy saving mode (Off / 2000 - 254 h after last use)
  • Adjustment options via near reflex
  • Sensor range (short / medium / long)
  • Stagnation flush (off / 30 s
  • every 24 h after the last rinse / every 24 h)
  • Pre-purge (Off / 2000 s)
  • automatic stadium operation (off / 1s per user)
  • Odor trap flushing (off / on)
  • Flushing time ( 2000 - 15 s)
  • Material front panel plastic
  • Chrome front panel surface
  • Dimensions front panel W 124 mm x H 153
  • 5 mm x D 12 mm
