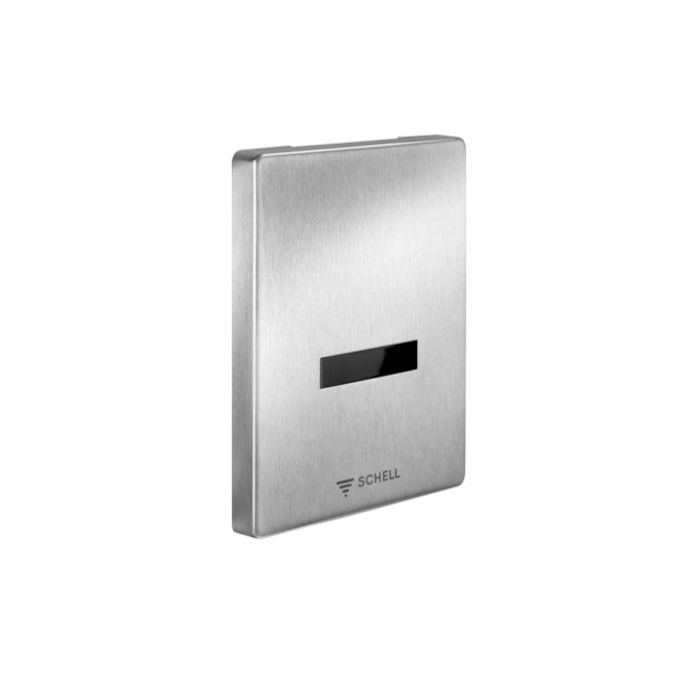

Schell Edition e trim set 028092899 urinal control, infrared, mains operation 230 V, vandal-proof, Stainless Steel
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 028092899
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell Edition e trim set 028092899
- contactless infrared Sensor flushing device
- for Urinal - Flush Valve COMPACT II
- Network operation
- suitable for networking with the SWS water management system
- parameterizable via Single Control SSC
- with front panel with infrared sensor window
- Solenoid valve 6 V with pre-filter
- Sensor frame with infrared match2 electronics
- programmable
- Flush-mounted power supply 100 - 240 VAC
- 50-60 Hz
- Setting options via SWS / SSC: Sensor range (short / medium / long)
- Programming via near reflex (off / on)
- Flushing time ( 2000 - 15 s)
- Stagnation flush (Off / 5 - 600 s
- all 2000 - 240 h after the last rinse / all 2000 - 240 h)
- Pre-purge (Off / 2000 s
- Blocking time 5 - 60 min after the last rinse)
- automatic stadium operation (off / 1s per user
- Main flush after 20 - 60 s after last use)
- 2000 trap flushing (Off / match4 - 240 h after the last flush)
- Energy saving mode (Off / 2000 - 254 h after last use)
- Adjustment options via near reflex
- Sensor range (short / medium / long)
- Stagnation flush (off / 30 s
- every 24 h after the last rinse / every 24 h)
- Pre-purge (Off / 2000 s)
- automatic stadium operation (off / 1s per user)
- Odor trap flushing (off / on)
- Flushing time ( 2000 - 15 s)
- Material front panel plastic
- Chrome front panel surface
- Dimensions front panel W 120 mm x H 150 mm x D 12 mm
