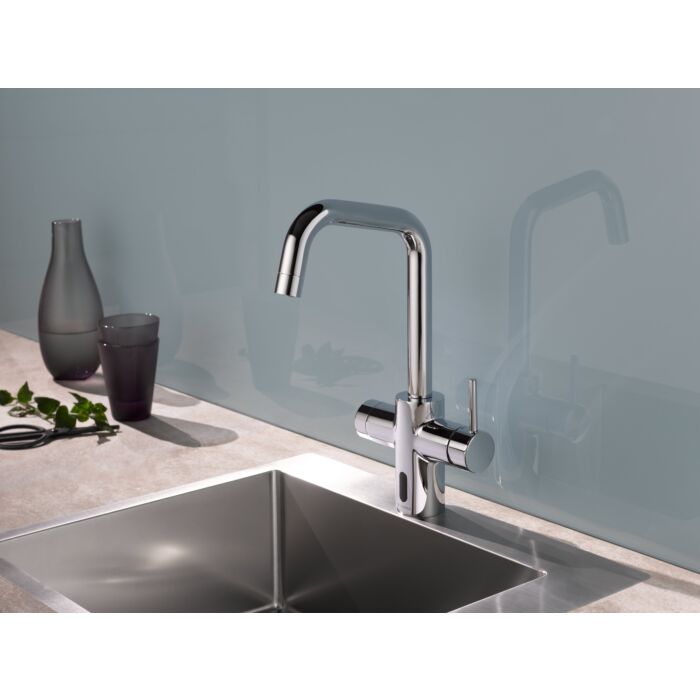

Schell Grandis E electronic kitchen mixer 002420699 with battery compartment, 6 V, for mixed water, chrome-plated

Schell Grandis E electronic kitchen mixer 002420699

• HD-M
• Infrared Sensor controlled and additional single lever operation
• suitable for networking with the SWS water management system
• parameterizable via Single Control SSC

consisting of:

• Kitchen tap with sensor
• electronic
• programmable
• Solenoid valve 6
• Single lever operation
• Ceramic cartridge with hot water limiter
• 2 flexible connection hoses G 3/8 IG x 420 mm with integrated backflow preventer (RV DIN EN 1717: EB) and pre-filter
• Swivel spout with adjustable swivel range
• Strahlregler
• Fastening material single-hole mounting
• Area of application / technical data: Flow rate (manual actuation) max. 10 l / min at 3 bar
• Flow rate (electronic release): max. 8.5 l / min at 3 bar
• Rest pressure max. 8 bar
• Flow pressure 1-5 bar
• max. water temperature 70 ° C (short-term e.g. for thermal disinfection setting options via near reflex: max. running time (4-240 s, 12 program levels)
• Stagnation flush (off / after last flush / fixed interval)
• Setting options via SWS / SSC: programming via local fl ex (off / on)
• max. running time (600 s)
• Stagnation flush (off / on, 5-600 s, all 240 h after last flush / all 240 h)
• Energy saving mode (off /254 h after last use)
• made of brass compliant with drinking water regulation
• Noise class: I.
• Certification mark: P-IX 29861 / IO
