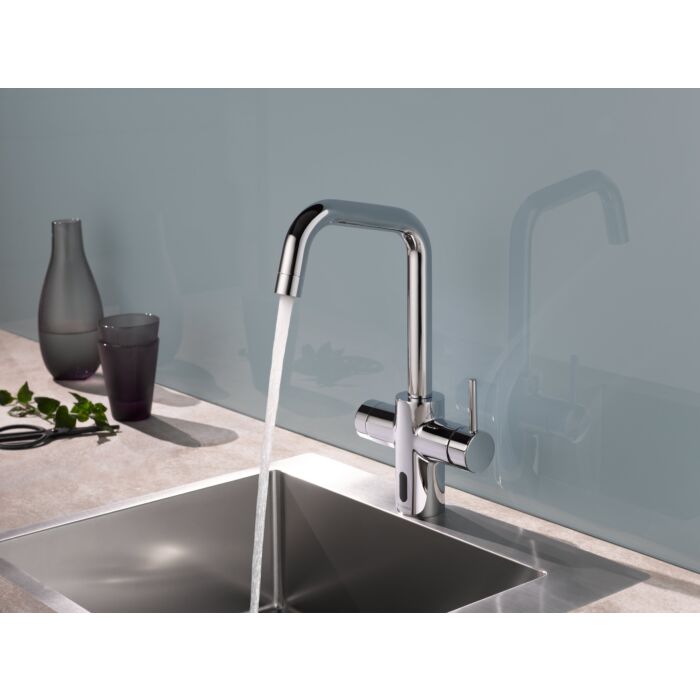

Schell Grandis E electronic kitchen mixer 002440699 without power supply, chrome-plated

Schell Grandis E electronic kitchen mixer 002440699

• Infrared Sensor controlled and additional single lever operation
• exclusive power supply
• intended for networking with the SWS water management system
• parameterizable via Single Control SSC. Intended for power supply via the SWS water management system
• consisting of:
• Kitchen faucet
• Infrared Sensor
• electronics
• programmable
• Solenoid valve 6 V
• Single lever operation
• Ceramic cartridge with hot water limiter
• 2 flexible connection hoses G 3/8 IG x 420 mm
• with integrated backflow preventer (RV DIN EN 1717: EB) and pre-filter
• swiveling spout with adjustable swivel range
• Strahlregler
• Fastening material single-hole mounting
• Area of application / technical data: Flow rate (manual activation): max. 10 l / min at 3 bar
• Flow rate (electronic release): max. 8.5 l / min at 3 bar
• Rest pressure max. 8 bar
• 2000 pressure match3 -5 bar
• max. water temperature 70 ° C (briefly e.g. for thermal disinfection)
• Setting options via near reflex: max. Running time (4-240 s 12 program levels)
• Stagnation flush (off / after last flush / fixed interval)
• Setting options via SWS / SSC:
• Programming via near reflex (off / on)
• max. running time ( 2000 -600 s)
• Stagnation flush (off / on 5-600 s, all 2000 -240 h after last flush / all 2000 -240 h)
• Energy saving mode (off / 2000 -254 h after last use)
• made of brass compliant with drinking water regulation
• Noise class I.
• Approval mark P-IX 29861 / IO
