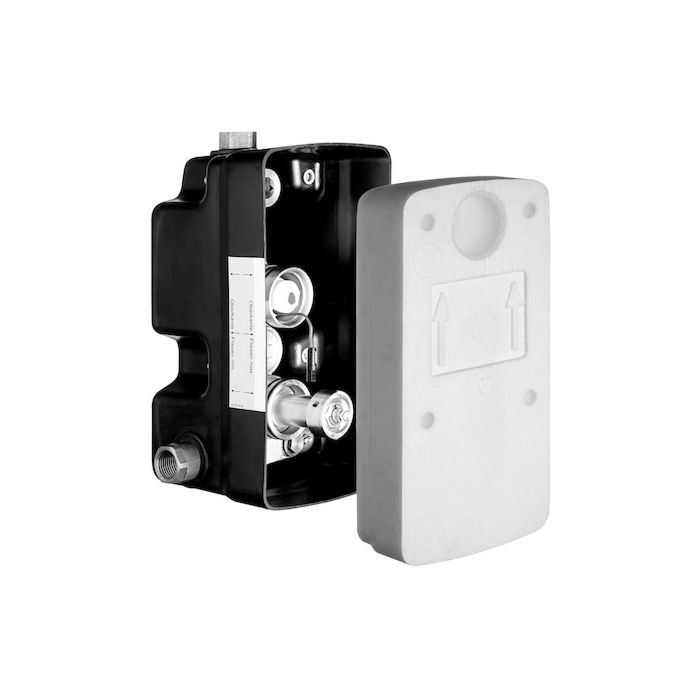

Schell basic body 018020099 electronic, thermostat, in-wall master box
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 308
Part Number: 018020099
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell basic body 018020099
- Mixed water
- thermostat
- for Mixer taps shower match1 LINUS / LINUS Basic DCT
- electronic release
- with sealed housing feedthroughs and internal shut-off
- additional inclusion of a solenoid valve for thermal disinfection possible
- Master box
- Shell housing
- Concealed shower fitting with 2 pre-shutoffs
- Solenoid valve 6 V
- Thermostat according to EN 1111
- Scald protection if the cold water supply fails
- 2 pre-filters
- 2 Check Valves RV (EN 1717: EB)
- Flushing nozzle
- Cleaning lid
- Flow rate at 3 bar 15 l / min
- 2000 pressure match4
- 1930 - 5
- 1930 bar
- max.rest pressure 8 bar
- max.operating temperature 70 ° C (80 ° C for thermal disinfection)
- Housing material plastic
- Water route dezincification-resistant brass compliant with German Drinking Water Ordinance
- Dimensions W 125 mm x H 246 mm x D 158 mm
- Installation depth 88 - 112 mm
- Connection 2x G 2000 / 2 IG
- 2000 G match4 / 2 IG
- Certificates P-IX 18001 / IA
- ACS
- Belgaqua
- Noise class I.
- Flow A
