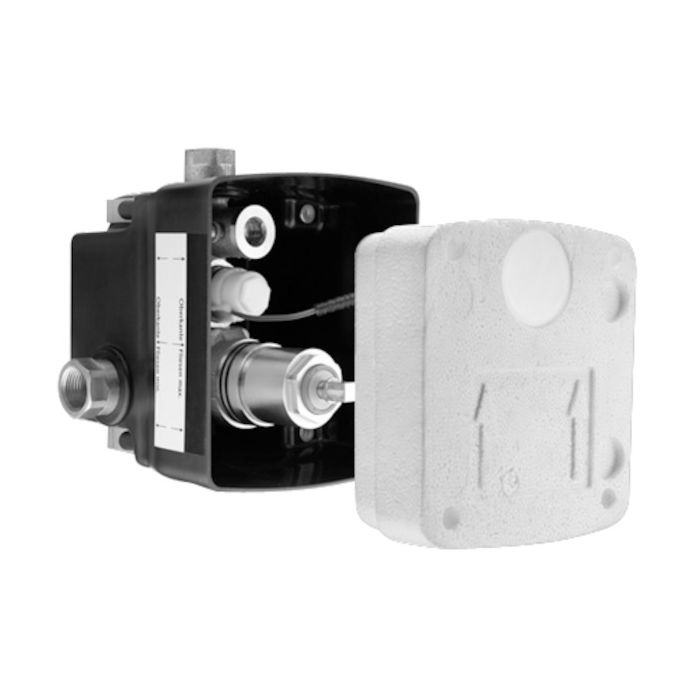

Schell base body 019040099 electronics, for mixed water
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 196
Part Number: 019040099
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell basic body 019040099
- Mixed water
- for concealed shower fittings LINUS DCM or LINUS Basic DCM
- electronic release
- with sealed housing feedthroughs and internal shut-off
- with master box
- Shell housing
- Concealed shower fitting with 2 pre-shutoffs
- Solenoid valve 6 V
- Mixing cartridge
- 2 pre-filters
- 2 Check Valves RV (EN 1717: EB)
- Flushing nozzle
- Cleaning lid
- Flow rate at 3 bar 15 l / min
- 2000 pressure match3
- 1930 - 5
- 1930 bar
- max.rest pressure 8 bar
- max.operating temperature 70 ° C (80 ° C for thermal disinfection)
- Housing material plastic
- Water route dezincification-resistant brass compliant with German Drinking Water Ordinance
- Dimensions W 138 mm x H 149 mm x D 140 mm, installation depth 100 - 124 mm
- Connection 2x DN 15 G 2000 / 2 IG
- 2000 DN 15 G match3 / 2 IG
- ACS certificates
- Belgaqua
