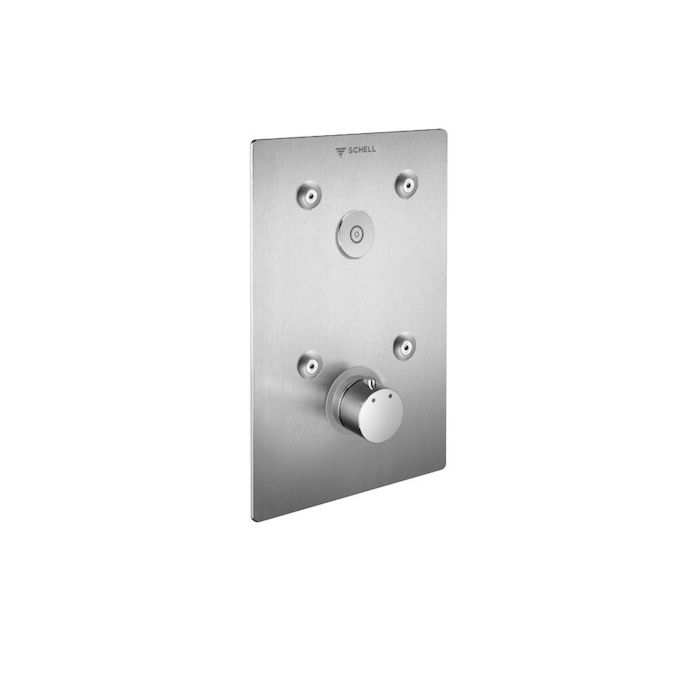

Schell Linus trim set 019092899 front panel Stainless Steel , CVD touch electronics, thermostat
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 184
Part Number: 019092899
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell Linus dct trim set 019092899
- Mixed water
- thermostat
- for flush-mounted masterbox WBD-ET
- Triggered by CVD touch electronics with automatic closing
- optional battery or mains operation
- suitable for pre-networking with the SWS water management system
- parameterizable via Single Control SSC
- with front panel
- Actuating button for thermostat with sleeve
- unlockable / lockable temperature lock 38 ° C
- CVD touch electronics
- programmable
- splash and water jet protected IP65
- Fastening material
- Setting options via SWS / SSC
- Operating force (light / medium / heavy)
- manual programming (off / on)
- max. running time ( 2000 - 950 s)
- 2000 (Off / match3 - 1000 s
- all 2000 - 250 h after the last rinse / all 2000 - 250 h)
- 2000 (Off / match3 - 255 s
- Timeout 2000 - 2000 min)
- Setting options via manual programming
- max. running time (4 - 120 s
- 10 program levels)
- Stagnation flush (off / 20 s
- every 24 h)
- Actuation material brass
- Stainless Steel panel match0
- Chrome actuation surface
- Stainless Steel front panel match0
- Dimensions front panel W 183 mm x H 283 mm x D 3 mm
- Protection class IP 65 (CVD touch electronics)
