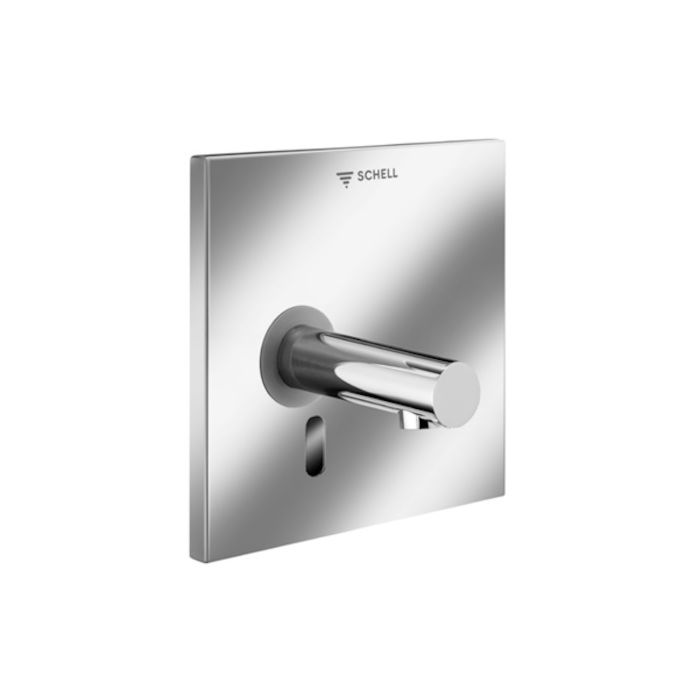

Schell Linus 019410699 brass front plate, with 170 mm spout, infrared Sensor electronics, cold water, mains operation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell Linus 019410699
- suitable for networking with SWS
- Can be parameterized via SSC wall outlet prefabricated set for in-wall masterbox WBW-EV with straight outlet
- Consists of a front panel 180 mm x 188 mm x 12 mm
- Programmable electronic module
- Flush-mounted power supply 100-240 V
- 60 Hz
- 9 V
- Mounting frame with fastening material
- Wall spout with Strahlregler (theft-proof)
- Pressure-independent flow control max. 5
- 1930 l / min
- 2000 pressure match5 -5 bar
- Hot water temperature max. 70 ° C (short-term use)
- adjustable via near reflex
- Sensor range short
- medium
- long
- Stagnation flush program (continuous flow 30 s
- 24 hours after last use / every 24 hours)
- Duration of continuous flushing for thermal disinfection (continuous flow 300 s) / continuous flow 120 s
- Cleaning stop 60 s
- Setting option with software SSC
- max. running time 2000 -360 s
- 1930
- 6-60 s
- Stagnation time 5-600 s
- Stagnation 2000 -240 h
- Run time for thermal disinfection 15-600 s
- Continuous flow 15-600 s
- Energy saving mode activated 2000 -254 h
- Cleaning stop 60-360 s
- Brass spout conforms to German Drinking Water Ordinance
