Schell Linus -mounted shower panel 008020899 anodised aluminum, with self-closing thermostat
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 600
Part Number: 008020899
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

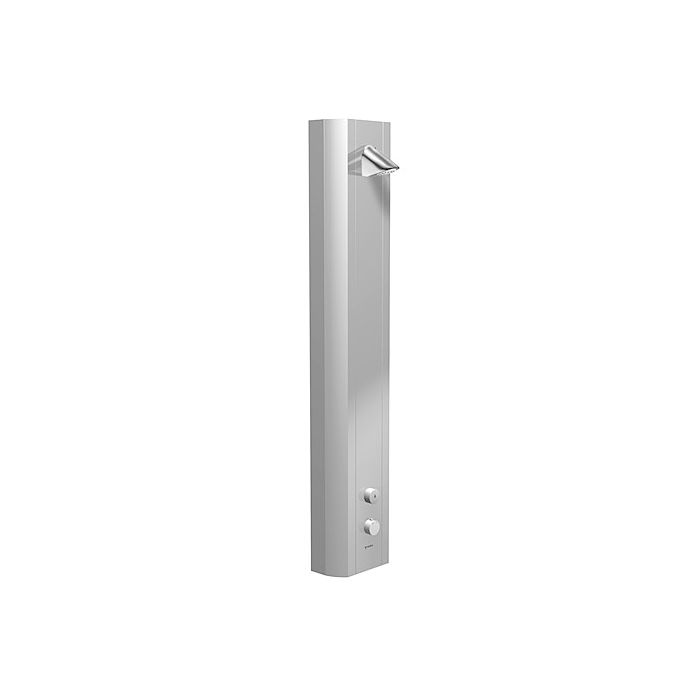

Schell Linus -mounted shower panel 008020899
- Shower panel made of sturdy extruded aluminum profile with high quality
- anodized surface and integrated shower fitting type LINUS D-SC-T
- swiveling front shell
- suitable for connections from behind or for wall connections from above
- Fitting housing with additional mounting of a solenoid valve for thermal disinfection
- Consisting of a panel with pre-assembled LINUS shower fitting with integrated self-closing cartridge and thermostatic cartridge with piping between the fitting and shower head connection
- Thermostatic cartridge with safety lock in the event of a cold water failure
- Actuating button thermostatic valve with hot water lock 38 ° C
- Locking disc for maximum temperature limitation (protection against scalding)
- Actuating button self-closing SC-V
- 2x Check Valves (RV
- DIN EN 1717: EB)
- COMFORT shower head
- Flow rate 9 l / min independent of pressure
- Fastening material
- Anschlusszubehör
- Flow fitting <= 10 l / min at 3 bar flow pressure
- 2000 pressure match5
- 1930 -5 bar
- Water temperature max. 70 ° C (short-term use)
- Runtime setting 5-30 s
- Dimensions 1200 mm x 226 mm x 115 mm
- Panel prepared for connection to existing pre-wall connections from the rear and pre-wall feed lines from above
- Panel made of aluminum / water line made of dezincification-resistant brass compliant with German drinking water regulations / actuators made of chrome-plated brass
- Noise class I.
- Certification mark Belgaqua
