Schell Modus E electronic washbasin fitting 021730699 with plug-in power supply 6 VDC, 100-240 VAC, 50-60 Hz, chrome-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 021730699
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

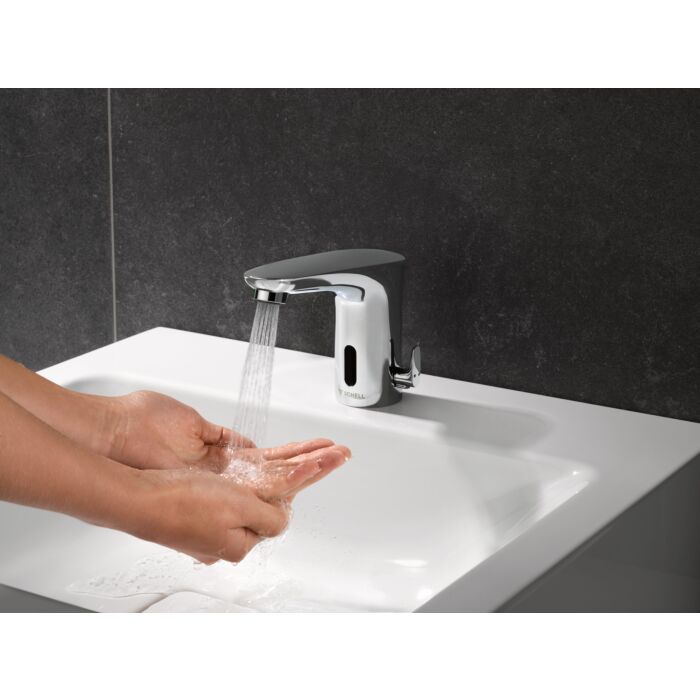

Schell Modus E electronic basin mixer 021730699
- HD-K - high pressure cold water / premixed water
- Infrared sensor controlled
- Battery operated
- with infrared sensor single-hole fitting
- Infrared sensor electronics
- programmable
- Solenoid valve 6 V
- Aerator
- Connection cable 200 mm
- with 2-pin plug
- Protection class IP 65
- Flexible connection hose G 3/8 IT x 450 mm
- with pre-filter
- Battery compartment 6 V
- Protection class IP 65
- 4x AA alkaline batteries 1
- 5V
- Fastening material for basin installation
- Adjustment options via close-up reflex
- Sensor range range (approx. 2 - 17 cm)
- Stagnation flushing (Off / continuous flow 30 s
- 24 hours after last use)
- Cleaning stop (Off / 120 s)
- Flow rate max. 3 l/min independent of pressure
- Flow pressure 0
- 5 - 5
- 0 bar
- max. resting pressure 8 bar
- max. operating temperature 70 °C (short-term e.g. for thermal disinfection)
- Housing material brass compliant with TrinkwV
- Chrome surface
- Connection G 3/8 IT
- Certificates P-IX 29853/IO
- Noise class I
- Flow class O
Downloads (2)
