Schell mode e infrared wall outlet fitting 019530699 projection 187 mm, HD-K, battery compartment 6 V, chrome-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

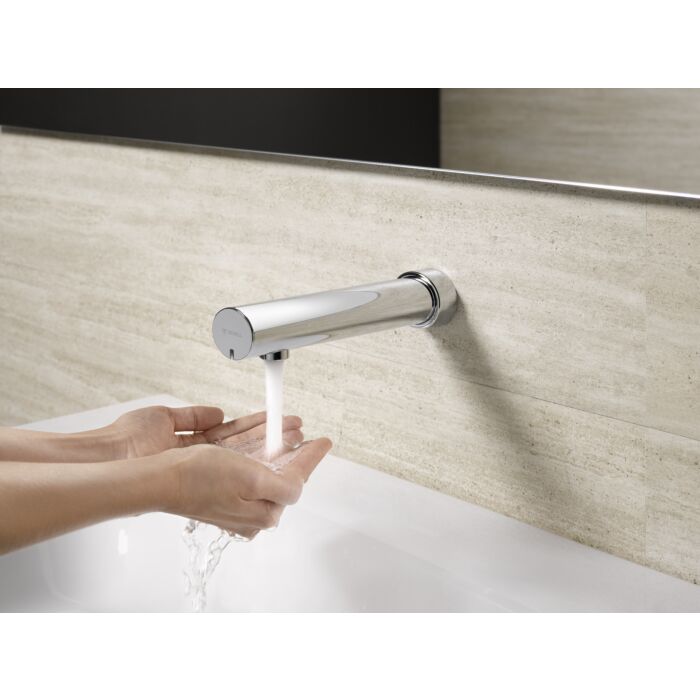

Schell mode e infrared wall outlet fitting 019530699
- High pressure chilled water / pre-mixed water
- Infrared Sensor controlled
- battery operation
- with infrared Sensor wall outlet fitting
- Infrared Sensor electronics
- programmable
- Solenoid valve 6 V
- pre-closure
- Strahlregler
- Battery compartment 6 V (integrated)
- 4x AA alkaline batteries 2000
- 5 v
- sliding rosette
- Setting options via close-up reflex: Sensor range (approx. 801 -13 cm)
- Stagnation flushing (off / continuous flow 30 s
- 24 hours after last use)
- Cleaning stop (Off / 120 s)
- Flow at 3 bar 3 l/min
- Flow pressure 1930
- 5-5 bars
- max. static pressure 8 bar
- max. operating temperature 70 °C (short-term e.g. for thermal disinfection)
- Brass housing compliant with Drinking Water Ordinance
- surface chrome
- Connection G 2000 / 801 AG
- Certificates: P-IX 29862/IO
- noise class I
- Flow class O
Downloads (2)
Product Safety
Manufacturer
SCHELL GmbH & Co. KG
E-Mail
info@schell.eu
Address
Raiffeisenstraße 31
57462 Olpe
Germany
