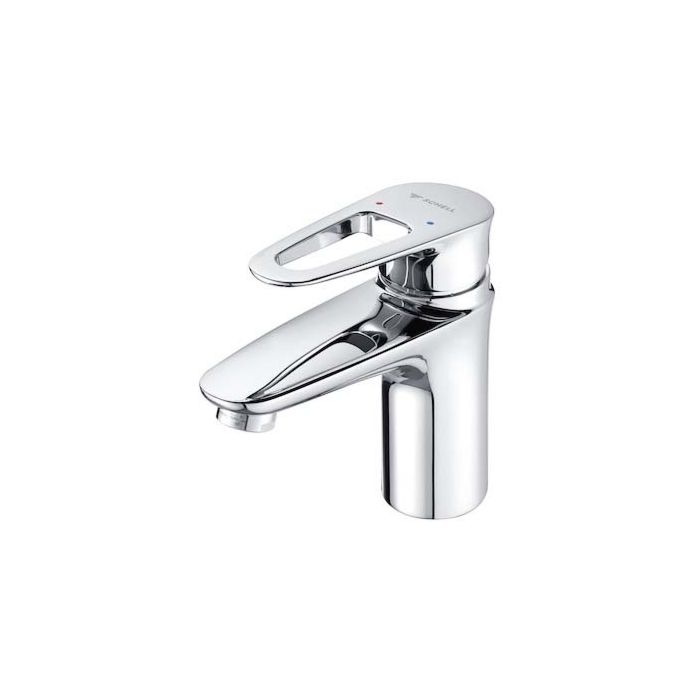

Schell Modus e single lever basin mixer 021800699
  • with bow lever
  • Temperature lock 38 °C
  • Anti-scald protection in the event of a cold water supply failure
  • Aerator
  • 2x flexible connection hoses Clean-Fix SG 3/8 IT x 440 mm
  • with integrated backflow preventer RV EN 1717 EB and pre-filter
  • Fastening material for basin installation
  • Flow rate max. 5 l/min independent of pressure
  • Flow pressure 1-5 bar
  • max. resting pressure 8 bar
  • max. operating temperature 70 °C
  • max. outlet temperature 38 °C
  • Actuation material: die-cast zinc
  • Brass housing compliant with TrinkwV
  • Chrome surface
  • Connection 2x G 3/8 IT
  • Certificates P-IX 29002/IO
  • Noise class I
  • Flow class O
