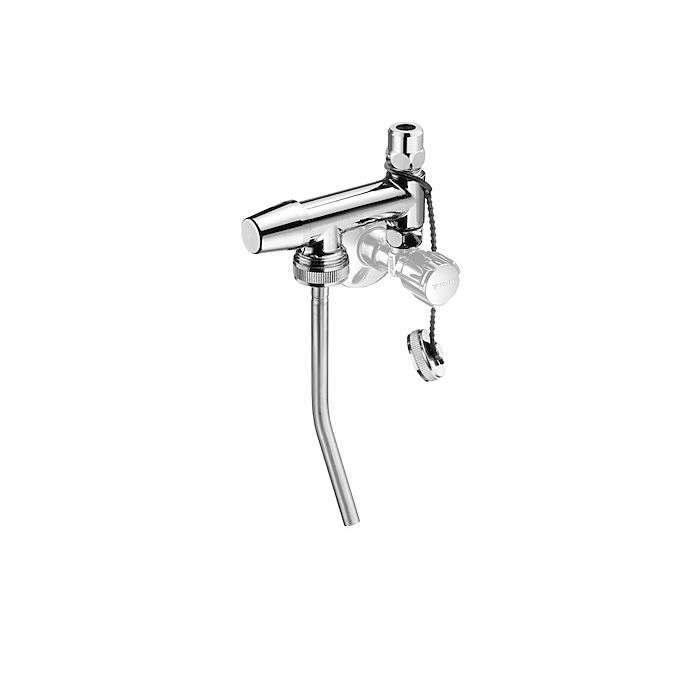

Schell sampling valve 038 380 699 G 3/8 IG x G 3/8 AG, chrome-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 5
Part Number: 038380699
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell sampling valve 038380699
- Sampling valve for mounting on angle valve with G 3/8 male thread outlet
- for taking drinking water samples according to DIN ISO 19458
- ideal for retrofitting
- with sampling valve
- secured actuation
- Tensile brass cone compression fitting with length compensation
- Extraction tube
- cranked
- with union nut
- Kappe with chain
- Max.operating temperature max. 120 ° C for a short time
- Stainless Steel material match0
- Housing brass compliant with German Drinking Water Ordinance
- Housing surface chrome
- Connection DN 10 G 3/8 IG
- Outlet Ø 10 mm (DN 10 G 3/8 AG)
- G 3/4 AG
- DVG certificates
