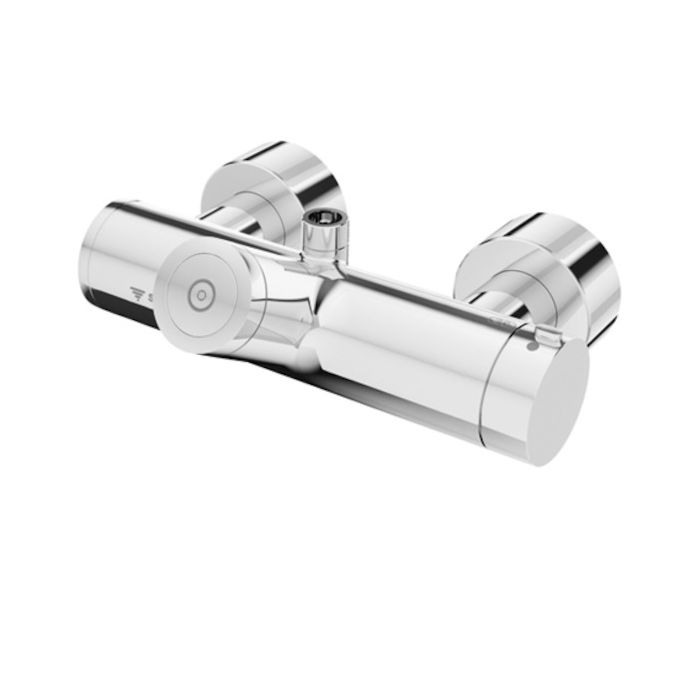

Schell Vitus shower thermostat 016040699 CVD, battery operation, chrome-plated, shower connection on top
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: 016040699
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell Vitus shower thermostat 016040699
- with CVD touch electronics
- On / Off / time limit
- Stagnation flush
- for parameterization and diagnosis of the CVD touch electronics optional USB adapter and software
- consisting of CVD touch electronics integrated in the valve cover
- Battery compartment with 4x AA batteries
- Cartridge solenoid valve concealed in the base body
- Thermostatic cartridge according to EN 1111 with unlockable / lockable temperature lock 38 ° C and safety lock in the event of a cold water failure
- Locking disc for maximum temperature limitation (protection against scalding)
- 2x Check Valves (RV
- DIN EN 1717: EB)
- Wall connection with S-connections and rosette (depth adjustable)
- Flow A
- Runtime setting 10-360 s in 10 program levels (factory setting 20 s)
- Stagnation flushing program can be activated (continuous flow 20 s / 24 h flushing)
- additional settings for runtime
- Stagnation flush duration and stagnation flush intervals via software
- Hot water temperature max. 70 ° C (short-term use)
- Housing made of brass conforms to German drinking water regulations
- Noise class I.
- Approval mark PA-IX 28574 / IB
- Belgaqua
- Dimension DN 15 G 2000 / 2 AG
- Shower connection DN 15 G 2000 / 2 AG
