Schell Vitus self-closing basin thermostat 016200699 210 mm, chrome-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

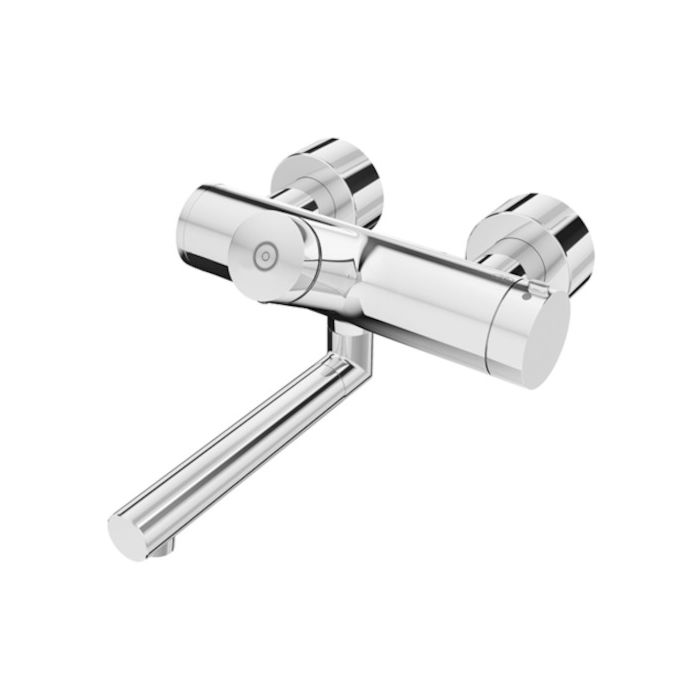

Schell Vitus self-closing basin thermostat 016200699
- manual release with automatic closing process
- easy run time setting
- with self-closing exposed basin mixer
- Self-closing button SC
- Thermostat according to EN 1111
- unlockable / lockable temperature lock 38 ° C
- Scald protection if the cold water supply fails
- Self-closing cartridge SC II
- 2 Check Valves RV (EN 1717: EB)
- swivel spout (lockable) with Strahlregler
- 2 S-connections and Rosetten (depth adjustable)
- Running time 2 - 15 s adjustable (7 s factory setting)
- Flow rate max. 5 l / min independent of pressure
- 2000 pressure match6
- 1930 - 5
- 1930 bar
- max.operating temperature 70 ° C (80 ° C for thermal disinfection)
- Material outlet brass compliant with German drinking water regulation
- Housing brass compliant with German Drinking Water Ordinance
- Surface chrome
- Strahlregler to the middle match1 210 mm
- Connection 2x DN 15 G 2000 / 2 AG
- Belgaqua certificates
Downloads (2)
Product Safety
Manufacturer
SCHELL GmbH & Co. KG
E-Mail
info@schell.eu
Address
Raiffeisenstraße 31
57462 Olpe
Germany
** Average Wholesale Price
