Schell Vitus -mounted shower fitting 002160699 CVD, battery operation, mixed water, chrome-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: 002160699
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

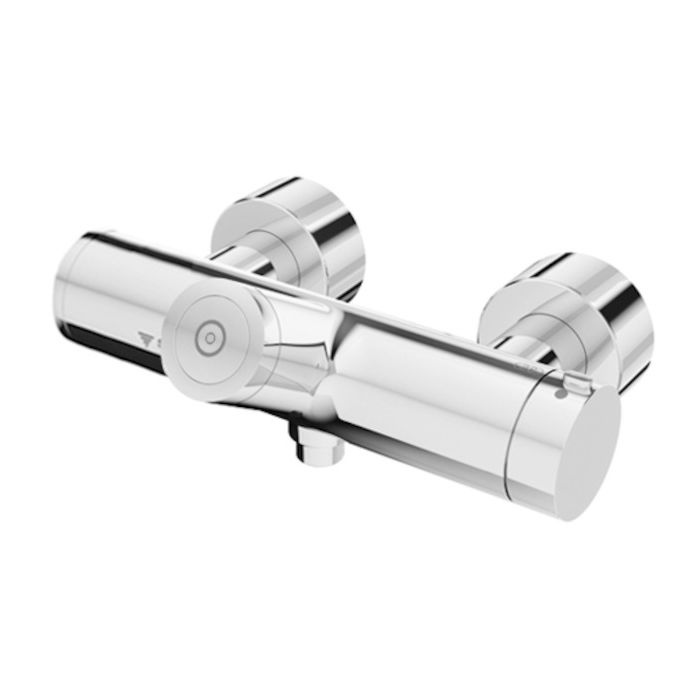

Schell Vitus -mounted shower mixer 002160699
- thermostat
- Triggered by CVD touch electronics with automatic closing
- Battery operated
- Shower connection below
- Integrated SWS bus extender radio BE-F VITUS for networking with the SWS water management system
- parameterizable via Single Control SSC
- with electronic self-closing exposed shower mixer
- Thermostat according to EN 1111
- unlockable / lockable temperature lock 38 ° C
- Scald protection if the cold water supply fails
- CVD touch electronics
- programmable
- splash and jet water protected IP65
- Bus extender radio BE-F VITUS
- Solenoid valve 6 V with pre-filter
- Battery compartment 6 V (integrated)
- 4x AA alkaline batteries 2000
- 5 V
- 2 Check Valves RV (EN 1717: EB)
- 2 S-connections and Rosetten (depth adjustable)
- Setting options via SWS / SSC
- Operating force (light / medium / heavy)
- manual programming (off / on)
- max. running time ( 2000 - 950 s)
- 2000 (Off / match5 - 1000 s
- all 2000 - 250 h after the last rinse / all 2000 - 250 h)
- 2000 (Off / match5 - 255 s
- Timeout 2000 - 2000 min)
- Setting options via manual programming
- max. running time (4 - 120 s
- 10 program levels)
- Stagnation flush (off / 20 s
- every 24 h)
- 2000 pressure match5
- 1930 - 5
- 1930 bar
- max.rest pressure 8 bar
- max.operating temperature 70 ° C (80 ° C for thermal disinfection)
- Housing material brass compliant with German Drinking Water Ordinance
- Surface chrome
- Connection 2x DN 15 G 2000 / 2 AG
- 2000 DN 15 G match5 / 2 AG (below)
- Belgaqua certificates
