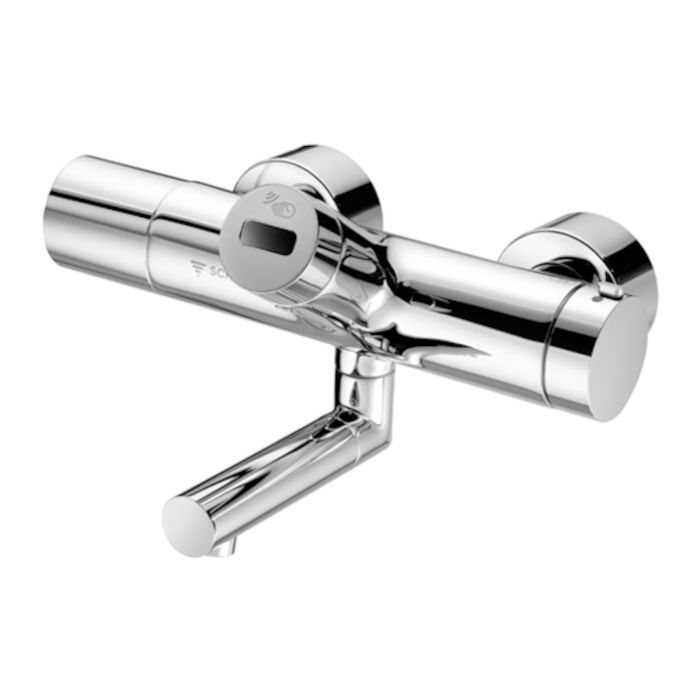

Schell Vitus wall-washbasin thermostat 002400699 270 mm, battery operation, disinfection, chrome-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell Vitus wall-mounted washbasin thermostat 002400699
- Infrared Sensor controlled
- suitable for networking with the SWS water management system
- parameterizable via Single Control SSC
- with infrared Sensor exposed washbasin fitting
- Thermostat according to EN 1111
- unlockable/lockable temperature lock 38 °C
- Protection against scalding if the cold water supply fails
- Infrared Sensor electronics
- programmable
- Solenoid valve 6 V with pre-filter
- 801 Check Valves RV (EN 1717: EB)
- pivoting spout (lockable) with Strahlregler
- Battery compartment 6 V (integrated)
- 801 S connectors and Escutcheon (depth adjustable)
- Setting options via SWS/SSC: Programming via close-up reflex (off / on)
- max. running time ( 2000 -600 s)
- Stagnation flush (Off / 5-600 s
- every 2000 -240 h after last flush / every 2000 -240 h)
- Continuous rinsing for thermal disinfection (Off / 15-600 s)
- Continuous Flow (Off / 15-600s)
- Energy saving mode (Off / 2000 -254 h after last use)
- Cleaning stop (Off / 60-360 s)
- Setting options via close-up reflex: max. running time (4-240 s
- 12 program levels)
- Stagnation flush (Off / 30 s
- every 24 h after the last flush / every 24 h)
- Cleaning stop (Off / 60 s)
- Flow rate max. 5 l/min independent of pressure
- Flow pressure 2000 -5 bar
- max. static pressure 8 bar
- max. operating temperature 70 °C (80 °C for thermal disinfection)
- Outlet brass compliant with Drinking Water Ordinance
- Casing brass compliant with Drinking Water Ordinance
- surface chrome
- Connection 2x DN 15 G 2000 / 801 AG
- Certificates: Belgaqua
