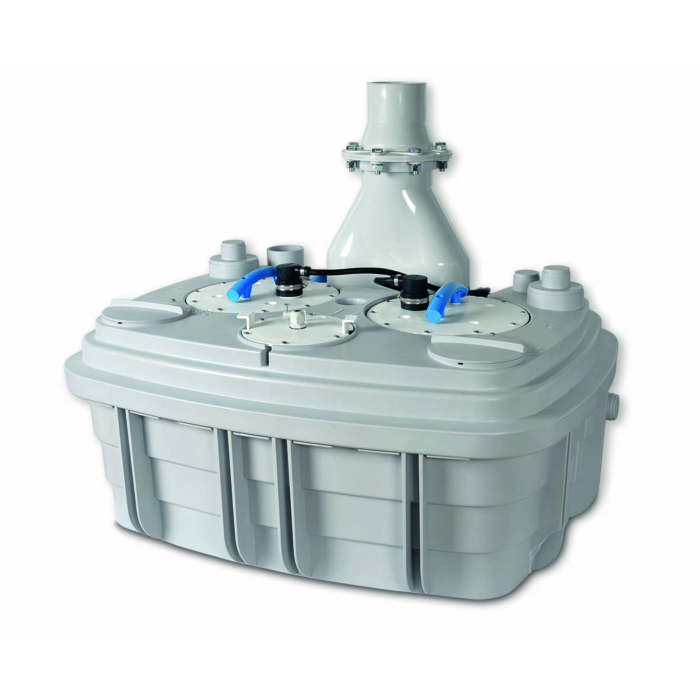

SFA SaniCubic 2 lifting station 0052TRISMART grey, three-phase, with smart terminal
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10110
Part Number: 0052TRISMART
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
SFA SaniCubic 2 lifting station 0052TRISMART
- Areas of application: Wastewater from entire residential units or a single-family or multi-family house as well as commercial and public buildings (e.g. schools
- Hotels and industrial plants)
- Max. flow (at 1 m discharge head) three-phase current 40 cbm/h
- Switch-on point 180 mm (+/- 20 mm)
- Protection class IP68
- Protection class control terminal IPX4
- Tank volume 120 l
- Usable volume 26 l
- Pressure line connection DN 100/110 mm
- Connection options 4 x DN 100/50/40 // 1 x DN 50 // (1 x DN 70 vent)
- 230-400 V/50 Hz (three-phase)
- 2 pumps
- self-secured
- Power 2 x 3,500 W (three-phase)
- permissible waste water temperature 40 °C
- Short-term operation 70°C
- approved according to EN 12050-1
- Weight (with accessories) 60 kg
- 2 integrated check valves
