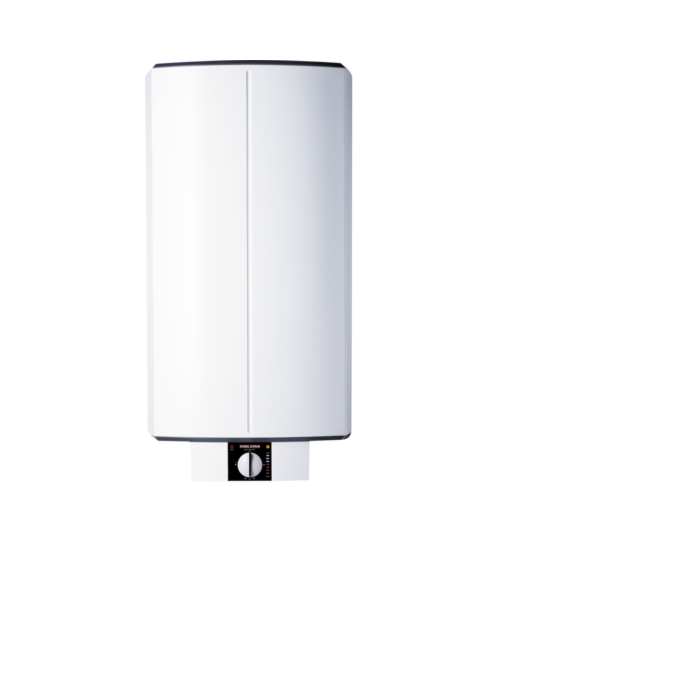

Stiebel Eltron hot water Wandspeicher 073050 SH 100 S, 100 liters, electonic, white

Stiebel Eltron hot water Wandspeicher SH 100 S, 100 l, 2000 -6 kW, white 073050

Technical description: Hot water Wandspeicher for every desired hot water supply. > Closed (pressure-proof) to supply several tapping points. Plumbing also in connection with plastic pipe systems (note manufacturer Plumbing and application limits). > Open (depressurized) to supply a tapping point. Electronic heat content indication with LED display in the control panel. Steel inner container with Spezial -Directemail anticor "and equipped as standard with signal anode (anti-corrosion rod) and light indicator in the control panel. CFC-free insulation with minimal heat loss. Universal flange single-circuit operation. The water content is kept at the set temperature depending on the controller. Stepless temperature setting of approx. 35 degrees C to approx. 82 degrees C, or a temperature limit on the dial at 45, 55 and 65 degrees C. Automatic frost protection, signal lamp when heating up, exchangeable copper heating flange, radiator connections through complete flange plug. Performance variants possible. Drain valve with hose connection G 3 / 4. Installation aid with recessed handles. Pre-mountable hanging ledge also enables installation in the corner. Plumbing with: Safety Group KV 30 or KV 40 with pressure-resistant connection or fitting for open devices with pressure-free connection. Quality and safety signs VDE / GS sign, radio protection sign IP 25 D. (Protected against water jets) Te Technical data: connected 2000 to 6 kW connection 2000 / N / PE 230 V connection 2 / N / PE 400 V connection 3 / N / PE 400 V nominal content 100 l water connection G 2000 / 2 mixed water 2000 40 degrees C 195 l standby 2000 at 65 degrees C / 24h 1930 , 77 kWh flow rate max. 18 l / min nominal overpressure 1930 , 6 MPa inner container (material) steel, email. Design closed outer jacket (material) sheet steel color white top-bottom cap (material) plastic dimensions and weight: H / W / D in mm 1050/510/510 weight 40.8 kg

Attention: Power supply (3 ~ / 400V) required. The approval of the local network operator may be required. Installation only by qualified specialists.
