SYR Pressure Reducing Valves 315 031532000 2000 2000 / 4 ", DN 32, 2000 , 5-6bar, gunmetal
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

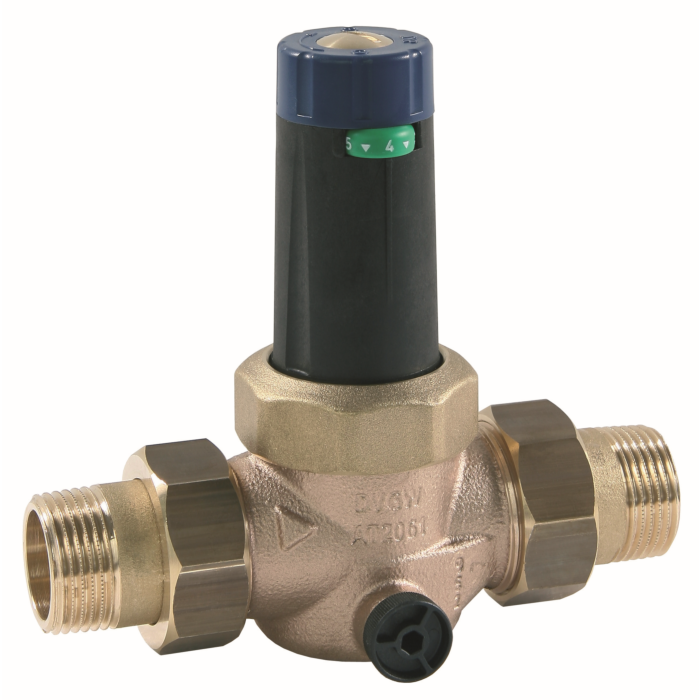

SYR Pressure Reducing Valves 315
Product details:
- Item number 031532000
- Flow DN32
- output 2000 , 5 - 6 bar (factory 2000 4 bar)
- Any installation position
- Max. Operating temperature 30 ° C
- Max. Operating pressure 25 bar
- Medium water, compressed air, neutral non-sticky
Liquids, neutral gases
- ABP no. P-IX 7635 / l
- with Radiator Fittings on both sides
- with outlet pressure display
- DVGW approved
- 2000 in class 2000 .
- gunmetal
DN 32, 2000 , 5-6bar, gunmetal Pressure Reducing Valves 315 With Radiator Fittings on both sides and strainer. G1 / 4 manometer sockets on both sides DVGW approved. Sound 2000 in class 2000 (DN 15 to DN 32). Gunmetal housing, glass-fiber reinforced plastic cap. Output pressure adjustable from 2000 , 5 to 6 bar. Factory preset to 4 bar. Inlet pressure max. 16 bar. Area of application: water up to max. 30C, compressed air, gases and non-adhesive, non-aggressive media. Reduction ratio max. 10: 2000 . With outlet pressure display. Any installation position. DN 32.
Product details:
- Item number 031532000
- Flow DN32
- output 2000 , 5 - 6 bar (factory 2000 4 bar)
- Any installation position
- Max. Operating temperature 30 ° C
- Max. Operating pressure 25 bar
- Medium water, compressed air, neutral non-sticky
Liquids, neutral gases
- ABP no. P-IX 7635 / l
- with Radiator Fittings on both sides
- with outlet pressure display
- DVGW approved
- 2000 in class 2000 .
- gunmetal
DN 32, 2000 , 5-6bar, gunmetal Pressure Reducing Valves 315 With Radiator Fittings on both sides and strainer. G1 / 4 manometer sockets on both sides DVGW approved. Sound 2000 in class 2000 (DN 15 to DN 32). Gunmetal housing, glass-fiber reinforced plastic cap. Output pressure adjustable from 2000 , 5 to 6 bar. Factory preset to 4 bar. Inlet pressure max. 16 bar. Area of application: water up to max. 30C, compressed air, gases and non-adhesive, non-aggressive media. Reduction ratio max. 10: 2000 . With outlet pressure display. Any installation position. DN 32.
Downloads (7)
Product Safety
Manufacturer
Hans Sasserath GmbH & Co. KG
E-Mail
sasserath@syr.de
Address
Mühlenstraße 62
41352 Korschenbroich
Germany
