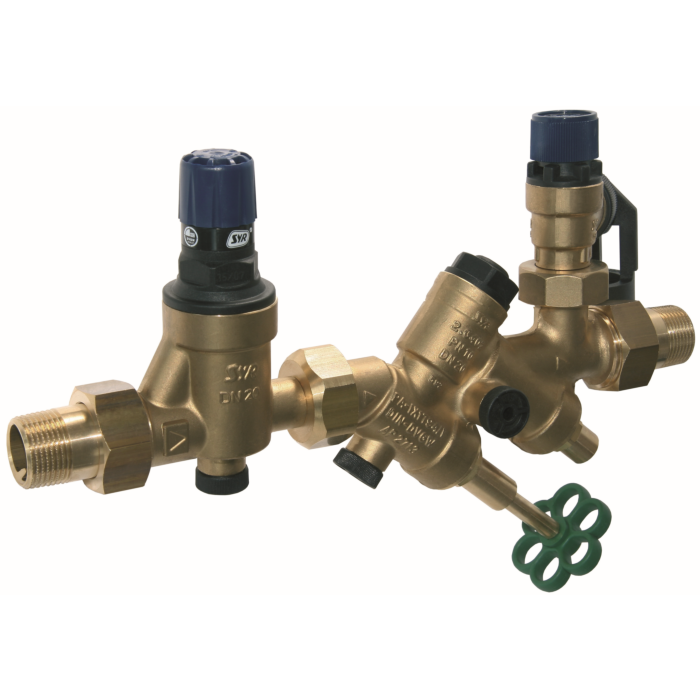

Syr - Sasserath Safety Group 0025.20.009 Pressure Reducing Valves , DN 20, 6 bar, R 2000 , raw yellow
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 002520009
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Syr - Sasserath Safety Group 0025.20.009
- for the connection of closed drinking water heaters acc. DIN 1988
- DVGW approved and noise 2000 in class 2000
- consisting of shut-off valve
- Check Valves with test facility
- second shut-off valve (DN 20)
- Membrane safety valve with valve seat made of Stainless Steel
- extendable drain funnel and additional Pressure Reducing Valves
- Output 2000 adjustable from 2000
- 5-6 bar
- factory set to 4 bar
- Pressed brass housing
- Max. Inlet pressure: 10 bar according to DIN EN 1488
- Max. Operating pressure: max. 80% of the response pressure of the safety valve
- Max. Operating temperature: 30 ° C
- Medium: drinking water
- Installation position: any
- Response pressure: 6
- 8 or 10 bar
- Max. Nominal content TWE: DN 15: 200 l / DN 20: 2000 .000 l
- Max. Heating capacity: DN 15: 75 KW / DN 20: 150 KW
- Component identifier: TÜV-SV-10-545-DN-WNp
- ABP.-No .: Pressure Reducing Valves P-IX 6736 / I / Safety Group PA-IX 1794 / I
Downloads (7)
Product Safety
Manufacturer
Hans Sasserath GmbH & Co. KG
E-Mail
sasserath@syr.de
Address
Mühlenstraße 62
41352 Korschenbroich
Germany
** Average Wholesale Price
