Syr Safety Group SYRobloc 25 002515000 pressure min., DN 15, 6 bar, 2000 / 2 ", raw yellow
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 002515000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

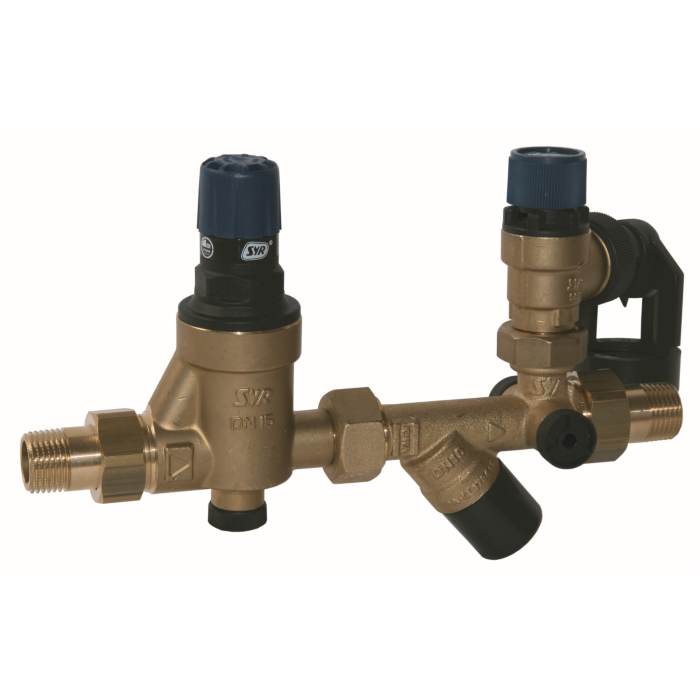

Syr Safety Group 25 SYRobloc DN 15, G1 / 2 6bar raw yellow SYRobloc- Safety Group 25, for the connection of closed drinking water Safety Group according to DIN 1988. Consists of: shut-off valve, backflow preventer with test device, second shut-off valve (only DN 20), membrane safety valve, new, extendable drain funnel and with Pressure Reducing Valves , outlet 2000 adjustable from 2000 , 5 to 6 bar. Factory preset to 4 bar housing made of pressed brass, cap of the safety valve made of glass fiber reinforced plastic. Seat of the safety valve from Stainless Steel . DN 15, 6 bar, screw connection G 2000 / 2, rg. Component tests: DIN-DVGW tested, TÜV-SV-10-545, sound insulation test number PA-IX 1794 / I.
Downloads (7)
Product Safety
Manufacturer
Hans Sasserath GmbH & Co. KG
E-Mail
sasserath@syr.de
Address
Mühlenstraße 62
41352 Korschenbroich
Germany
