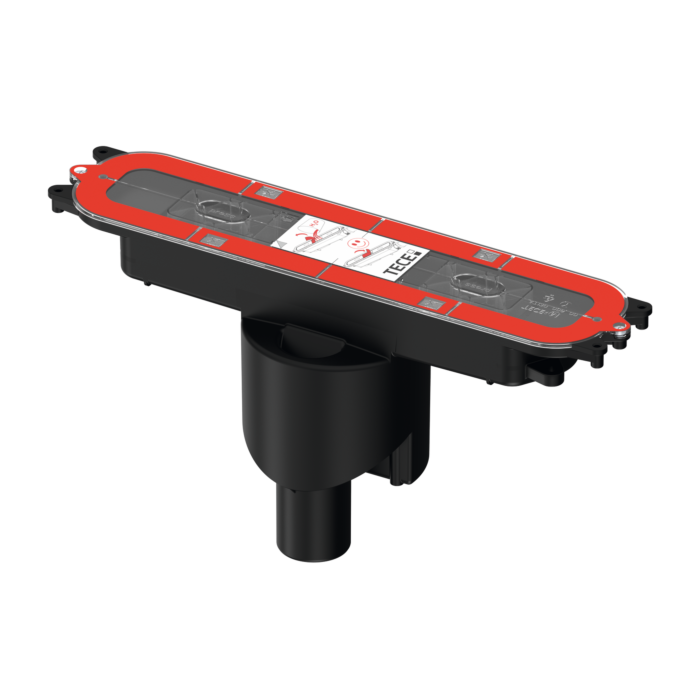

TECE drainprofile drain 673003
  • for TECE drainprofile shower profiles
  • for installation in the screed
  • for vertical connection to a waste water pipe
  • factory-attached and clickable Seal System sealing collar
  • for making a DIN 18534-compliant connection to the bonded seal
  • Minimum construction height 47 mm (lower edge of drain to upper edge of screed)
  • Drainage performance >=0
  • 8/>= 1
  • 2 l/s (according to EN 1253 with 10/20 mm accumulation over profile cover)
  • Water seal height 50 mm
  • Removable odor trap
  • Integrated screed anchoring
  • factory attached/clickable and flexible sealing collars with Seal System
  • suitably prefabricated noise protection strips
  • protection cover
  • Slidable/movable seal for connection with TECE drainprofile shower profile and to compensate for construction tolerances
