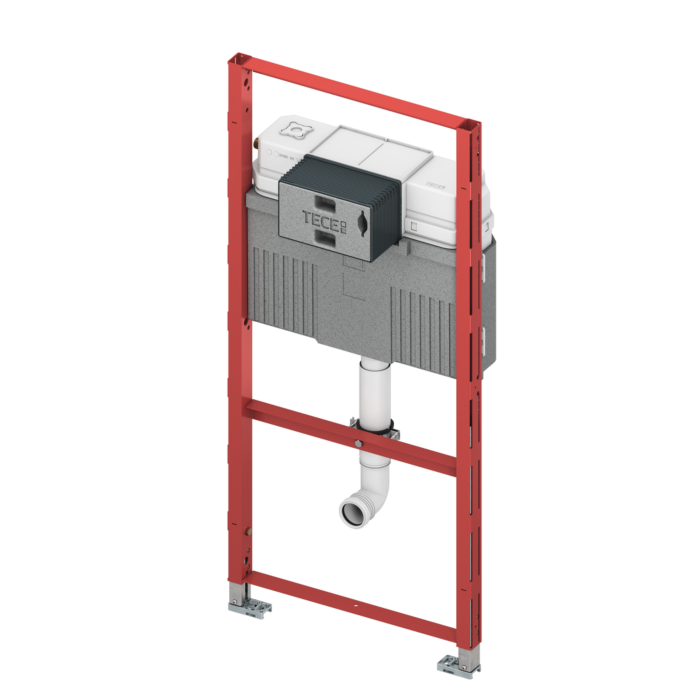

TECE TECEprofil WC module 9300388 height 1120 mm, with cistern, front / top actuation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 9300388
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
TECE TECEprofil WC module 9300388
- for attachment to TECEprofil tubes or as a front-wall or corner module
- for WC fittings and TECE - Flush Plates
- Completely pre-assembled unit
- TECE UP cistern for top or front actuation. Plastic safety tank
- Cistern completely pre-assembled and sealed
- 2000 with match3 / 2 "IG
- hydraulically optimized cistern for low construction heights
- 10 l tank volume
- 6 l cistern according to DIN EN 14055
- 4th
- 5/7
- 5/9 l flush volume adjustable
- 3 l partial flush with dual flush technology
- Remaining volume can be used for immediate cleaning rinsing
- Can be used as a single or dual flush cistern depending on the flush plate
- Can be used for actuation from above or from the front, depending on installation
- tested according to DIN EN 14055
- 2000 fitting group according to DIN 4109
- Low-noise hydraulic filling valve L (ap) <= 17 dB ( A ) at 3 bar flow pressure
- Module consisting of a self-supporting assembly frame with a powder-coated surface
- two retaining bolts and nuts M 12
- WC bend DN 90 with Übergangsstück DN 90/100 made of PP
- Übergangsstück also suitable for horizontal installation
- WC connection set DN 90 including protective plug
- 2 depth-adjustable module mountings
